02 - Backguard


03 - Broiler Parts


04 - Cooktop Parts


05 - Door Parts


06 - Body Parts


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131280		Trim-wrapper		Appelez-nous	-
2	5303212662		Plate, Instrument Mtg		Appelez-nous	-
3	5303271893		Panel-control		Appelez-nous	-
4	5303212666		Trim-lwr Splasher-white		Appelez-nous	-
4	5303212667		Trim-lwr Splasher-almond		Appelez-nous	-
5	3131240		Trim-glass Rtnr (2)		Appelez-nous	-
6	3131123		Shield, Rear Wall		Appelez-nous	-
7	5303271427		Timer Eoc		Appelez-nous	-
8	3051115		Ballast		Appelez-nous	-
9	3206430		Switch-s/u Lg (1)		Appelez-nous	-
10	5303212659		Knob-control (3)		Appelez-nous	-
11	3204590		Knob-thermostat Oven		Appelez-nous	-
12	3204586		Button - Elec Clock (8)		Appelez-nous	-
13	5308037896		Indicator Light				$ 39.75
14	3204745		Bushing-cont Shaft		Appelez-nous	-
15	5303011507		Bezel, Switch (2)				$ 21.47
16	3131267		Cap-end Lh		Appelez-nous	-
17	3131275		Bulb-fluor				$ 49.40
18	3051222		Recept.-fluor Lt Lh		Appelez-nous	-
19	3131277		Supt-fluor Recept. Mtg.		Appelez-nous	-
20	5303200479		Switch-ov Lt				$ 7.04
21	5303200480		Switch-fl-lt				$ 125.53
22	5303212668		Trim-canopy		Appelez-nous	-
23	5303131237		Support-background		Appelez-nous	-
24	5303211001		Trim-vent		Appelez-nous	-
10A	5303271894		Knob-top Temp (1)		Appelez-nous	-
16A	3131268		Cap-end Rh		Appelez-nous	-
18A	3051223		Recept.-fluor Lt Rh		Appelez-nous	-
9A	3206431		Switch S/u Sm. (2)		Appelez-nous	-
9B	3051318		Thermo-top Temp Ctrl		Appelez-nous	-

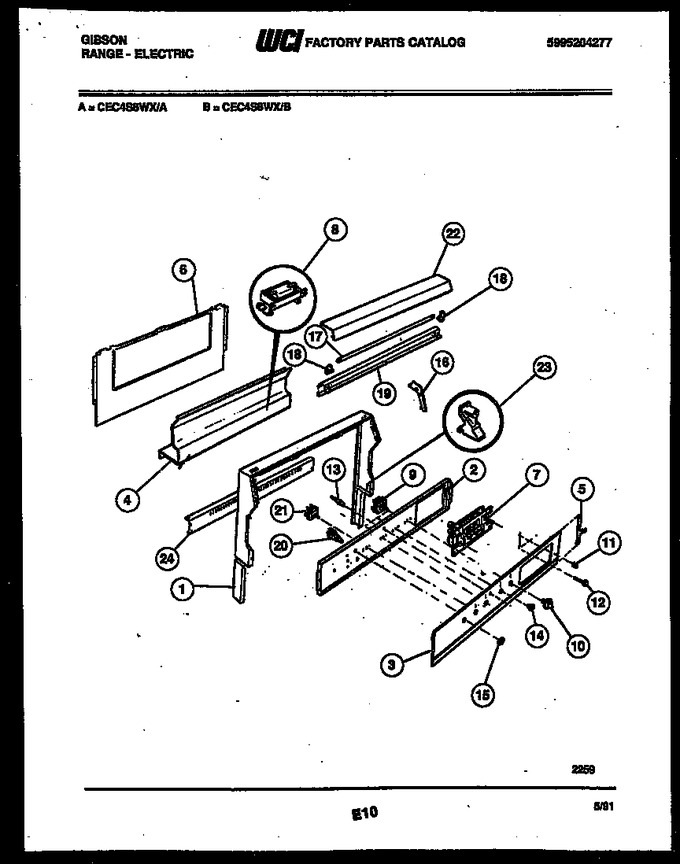

    View Diagram in Separate Window       Print Part List
