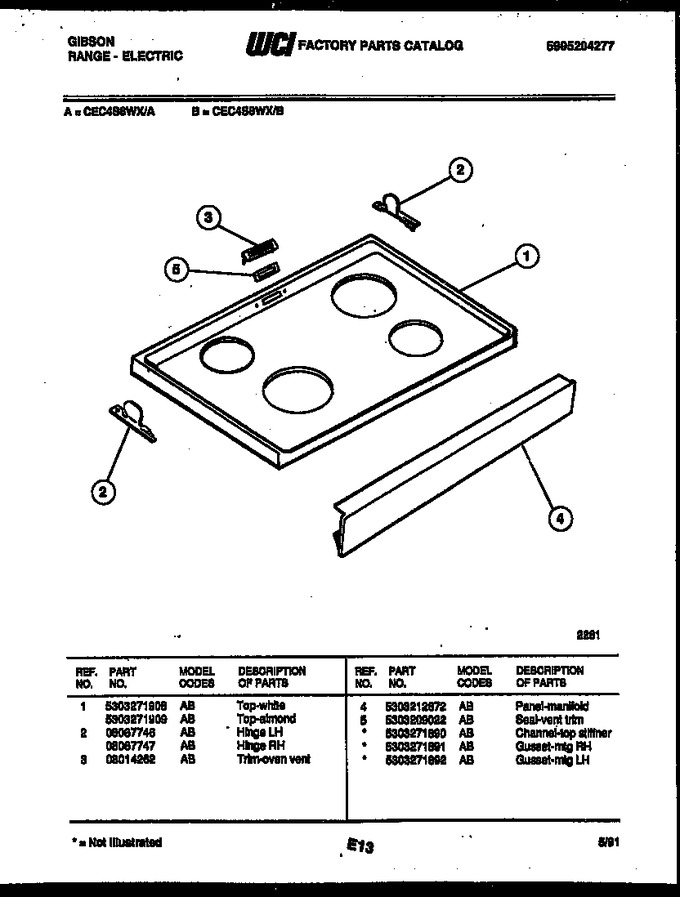

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271909 | Top-almond |
|
- | |||||
| 1 | 5303271908 | Top-white |
|
- | |||||
| 2 | 08067746 | Hinge Lh |
|
- | |||||
| 3 | 08014262 | Trim, Oven Vent |
|
- | |||||
| 4 | 5303212672 | Panel-manifold |
|
- | |||||
| 5 | 5303209022 | Seal-vent Trim |
|
- | |||||
| *43085 | 5303271891 | Gusset-mtg Rh |
|
- | |||||
| *43085 | 5303271890 | Channel-top Stiffner |
|
- | |||||
| *43085 | 5303271892 | Gusset-mtg Lh |
|
- | |||||
| *43099 | 3200834 | Shield Heat B/s (2) |
|
- | |||||
| *43099 | 3203550 | Plug-button |
|
Immediately | $ 15.22 | ||||
| *43099 | 5303206618 | Bracket-cable Mtg |
|
- | |||||
| *43099 | 3934056 | Anti-tip Kit |
|
- | |||||
| *43099 | 3200846 | Fstnr-edge Mtg (2) |
|
- | |||||
| *43099 | 5303271873 | Shield, Vent Tube |
|
- | |||||
| *43099 | 08067757 | Cover Plate |
|
- | |||||
| *43100 | 3131252 | Shield Lwr Rear Wall |
|
- | |||||
| *43100 | 19100210085 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| 2A | 08067747 | Hinge Rh |
|
- |
