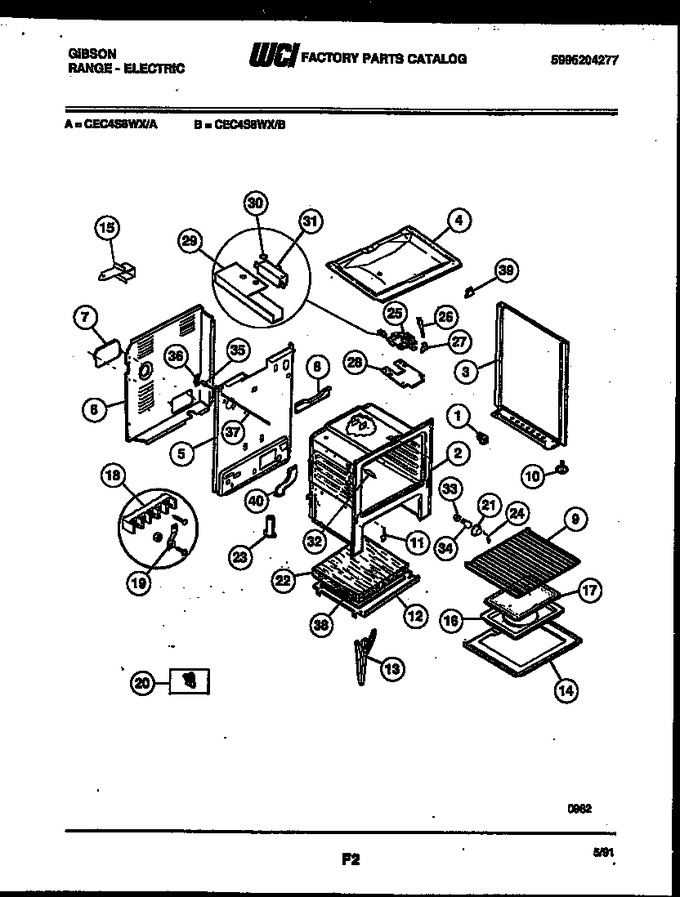

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer, B/s (8) |
|
$ 3.62 | |||||
| 3 | 3205620 | Panel-side Lh (white) |
|
- | |||||
| 3 | 3205621 | Panel-side Lh (almond) |
|
- | |||||
| 4 | 5303271899 | Burner Box |
|
- | |||||
| 5 | 3203082 | Back-main |
|
- | |||||
| 6 | 3203549 | Shield-lower Access |
|
- | |||||
| 7 | 3203405 | Cover-lower Access |
|
- | |||||
| 8 | 3051368 | Cover-flue |
|
- | |||||
| 9 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 10 | 3206285 | Screw-level (4) |
|
- | |||||
| 11 | 3131570 | Cover-hng Cutout |
|
$ 7.35 | |||||
| 12 | 3200825 | Shield-wool Lower |
|
- | |||||
| 13 | 5303051414 | Channel-door Hng |
|
- | |||||
| 14 | 3203540 | Bottom Oven |
|
- | |||||
| 15 | 3203582 | Shield-rear Wall |
|
- | |||||
| 16 | 5303013568 | Broiler Pan |
|
- | |||||
| 17 | 5301313356 | Insert-broiler Pan |
|
- | |||||
| 18 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 19 | 5303212739 | Ground Strap |
|
- | |||||
| 20 | 3051162 | Glide-drawer |
|
Immediately | $ 8.22 | ||||
| 21 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 22 | 3200847 | Insulation, Lower |
|
- | |||||
| 23 | 5303271905 | Tube-oven Vent |
|
- | |||||
| 24 | 3204585 | Wire Glass Retainer |
|
- | |||||
| 25 | 5303015361 | Latch-door |
|
- | |||||
| 26 | 5303131357 | Handle-latch |
|
$ 37.33 | |||||
| 27 | 3203218 | Knob-latch |
|
- | |||||
| 28 | 3051413 | Shield-latch |
|
- | |||||
| 29 | 3131593 | Shield, Bi Metal Latch |
|
- | |||||
| 30 | 08067776 | Fastener-push On (3) |
|
- | |||||
| 31 | 5303269499 | Switch Latching |
|
$ 20.53 | |||||
| 32 | 5304497424 | Probe-oven Temp (Replaces: 3204593) |
|
Immediately | $ 38.32 | ||||
| 33 | 3014073 | Socket-oven Light |
|
- | |||||
| 34 | 5303208582 | Light Bulb, Oven |
|
- | |||||
| 35 | 5303202622 | Switch, Door |
|
- | |||||
| 36 | 5303131289 | Bracket-light Switch |
|
- | |||||
| 37 | 5303209316 | Rod Light |
|
- | |||||
| 38 | 3200848 | Shield,heat ,lower |
|
- | |||||
| 39 | 3205821 | Clip-retainer (2) (Replaces: 3051124) |
|
Immediately | $ 35.44 | ||||
| 40 | 5303271872 | Tube-vent Upper |
|
- | |||||
| 24A | 3200833 | Insulation-wrap (non-illustrated) |
|
- | |||||
| 24B | 3204582 | Insulation-back (non-illustrated) |
|
- | |||||
| 24C | 3131903 | Bumper |
|
$ 55.36 | |||||
| 24D | 5303212740 | Screw-hinge Mtg (4) (non-illustrated) |
|
- | |||||
| 24E | 5303051099 | Nut-hex Brass (6) (non-illustrated) |
|
- | |||||
| 27A | 08013188 | Screw, Set, 10-24 X 3/16, Latch Knob |
|
- | |||||
| 38A | 3131304 | Insulation-top (non-illustrated) |
|
- | |||||
| 3A | 3205623 | Panel-side Rh (white) |
|
- | |||||
| 3A | 3205624 | Panel-side Rh (almond) |
|
- |
