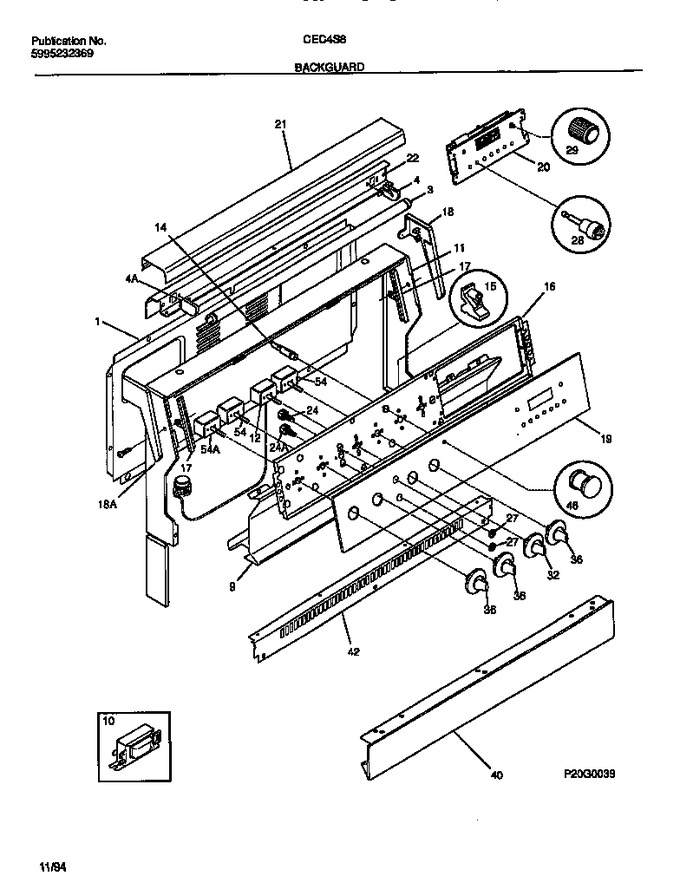

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028703		Shield-backguard, Rear Wall		Appelez-nous	-
3	3131275		Lamp-fluorescent, Backguard				$ 49.40
4	3051222		Receptacle-lamp, Rh		Appelez-nous	-
9	5303292977		Trim-splasher, White		Appelez-nous	-
10	5303051115		Ballast-lamp		Appelez-nous	-
11	5303292932		Trim-wrapper, Black		Appelez-nous	-
12	3051318		Thermo, Top Temp Ctrl, 8`` Elem		Appelez-nous	-
14	5308037896		Indicator Light				$ 39.75
15	530131237		Support, Backguard, (2)		Appelez-nous	-
16	5303212662		Plate, Instrument Mtg		Appelez-nous	-
17	3131240		Trim-glass Retainer, (2)		Appelez-nous	-
18	3131268		End Cap, Rh		Appelez-nous	-
19	5303271893		Panel, Control, Glass		Appelez-nous	-
20	5303271427		Clock/timer, Eoc		Appelez-nous	-
21	3131282		Trim-canopy/shield		Appelez-nous	-
22	3131277		Support-receptacle		Appelez-nous	-
24	5303200480		Switch, Work Light, Push Button, White				$ 125.53
27	5303011507		Bezel-switch				$ 21.47
28	3204586		Button-clock, Black		Appelez-nous	-
29	3204590		Knob-eoc Control, Black		Appelez-nous	-
32	5303271894		Knob, Thermo Top Temp Ctrl		Appelez-nous	-
36	5303212659		Knob-control, Infinite Sw		Appelez-nous	-
40	5303212672		Panel-manifold		Appelez-nous	-
42	5303211001		Trim-vent		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
*00880	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*00890	3204745		Bushing-ctrl Shaft		Appelez-nous	-
18A	3131267		End Cap, Lh		Appelez-nous	-
24A	5303200479		Switch-oven Light, Push Button				$ 7.04
4A	3051223		Receptacle-lamp, Lh		Appelez-nous	-
54A	5303285143		Switch, 8`` Element		Appelez-nous	-
