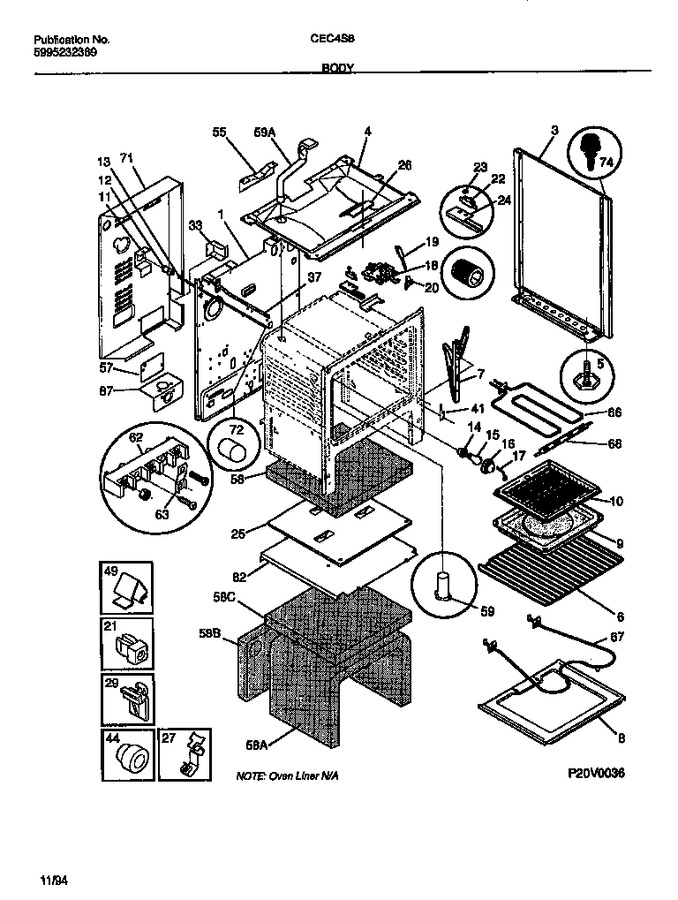

02 - Backguard
03 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203082 | Back-main |
|
- | |||||
| 3 | 5303269519 | Panel-bodyside, White, Lh (non-illustrated) |
|
- | |||||
| 3 | 5303269518 | Panel-bodyside, White, Rh |
|
- | |||||
| 4 | 5303271899 | Burner Box |
|
- | |||||
| 5 | 5303288460 | Nut, T-type, Leveling Screw (non-illustrated) |
|
$ 27.14 | |||||
| 5 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 5 | 3934056 | Anti-tip Kit (non-illustrated) |
|
- | |||||
| 6 | 5303281625 | Rack Oven |
|
- | |||||
| 7 | 316007002 | Hinge-oven Door, (2) |
|
$ 244.07 | |||||
| 8 | 3203540 | Panel-oven Bottom |
|
- | |||||
| 9 | 5303013568 | Pan-broiler |
|
- | |||||
| 10 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 11 | 5303131289 | Bracket-light Switch |
|
- | |||||
| 12 | 5303202622 | Switch-oven Light, Door Frame |
|
- | |||||
| 13 | 5303269501 | Rod-light Switch |
|
- | |||||
| 14 | 3014073 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Light Bulb/lamp (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204585 | Retainer-glass |
|
- | |||||
| 18 | 5303015361 | Latch-door, Bimetal |
|
- | |||||
| 18 | 3131593 | Shield-latch, Top (non-illustrated) |
|
- | |||||
| 19 | 5303131357 | Handle-latch |
|
$ 37.33 | |||||
| 20 | 08013188 | Screw, Set, 10-24 X 3/16, Latch Knob |
|
- | |||||
| 20 | 3203218 | Knob-latch |
|
- | |||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 22 | 5303269499 | Switch-latch |
|
$ 20.53 | |||||
| 22 | 08067978 | Stud-spacer (non-illustrated) |
|
- | |||||
| 23 | 08067776 | Fastener-push-on |
|
- | |||||
| 24 | 3051413 | Shield-latch |
|
- | |||||
| 25 | 3200848 | Shield,heat ,lower |
|
- | |||||
| 26 | 08067757 | Cover Plate |
|
- | |||||
| 29 | 3051162 | Glide-drawer, Front |
|
Immediately | $ 8.22 | ||||
| 33 | 3203582 | Shield-rear Wall |
|
- | |||||
| 37 | 5304497424 | Probe-oven Temp (Replaces: 3204593) |
|
Immediately | $ 38.32 | ||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 44 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 49 | 3205821 | Clip-spring Mtg (Replaces: 3051124) |
|
Immediately | $ 35.44 | ||||
| 55 | 3051368 | Shield-flue Cover |
|
- | |||||
| 57 | 3203405 | Cover-access |
|
- | |||||
| 58 | 3200847 | Insulation, Oven Bottom |
|
- | |||||
| 59 | 5303271905 | Tube, Oven Vent, Lower |
|
- | |||||
| 62 | 5303935061 | Terminal Block |
|
- | |||||
| 63 | 5303212739 | Plate-ground Strap |
|
- | |||||
| 66 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 67 | 316075103 | Element-bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 68 | 3051373 | Support-element |
|
- | |||||
| 71 | 3203549 | Shield-rear Wall, Lower |
|
- | |||||
| 72 | 5303285692 | Cover-light/switch Rod |
|
- | |||||
| 82 | 3200825 | Shield, Oven Bottom |
|
- | |||||
| 87 | 5303206618 | Bracket-cable Mtg |
|
- | |||||
| *00881 | 3200834 | Shield-heat, Body Side |
|
- | |||||
| *00882 | 3200846 | Fastener-edge Mtg |
|
- | |||||
| *00883 | 5303271873 | Shield, Vent Tube |
|
- | |||||
| *00892 | 5303321319 | Touch-up Paint-white (Replaces: 5303305324) |
|
Immediately | $ 13.46 | ||||
| *00894 | 3203550 | Plug-button |
|
Immediately | $ 15.22 | ||||
| *00895 | 08067961 | Fastener-power Cord |
|
- | |||||
| 58A | 3200833 | Insulation, Oven Wrapper |
|
- | |||||
| 58B | 3204582 | Insulation, Oven Back |
|
- | |||||
| 58C | 3131304 | Insulation, Oven Top |
|
- | |||||
| 59A | 5303271872 | Tube, Oven Vent, Upper |
|
- |
