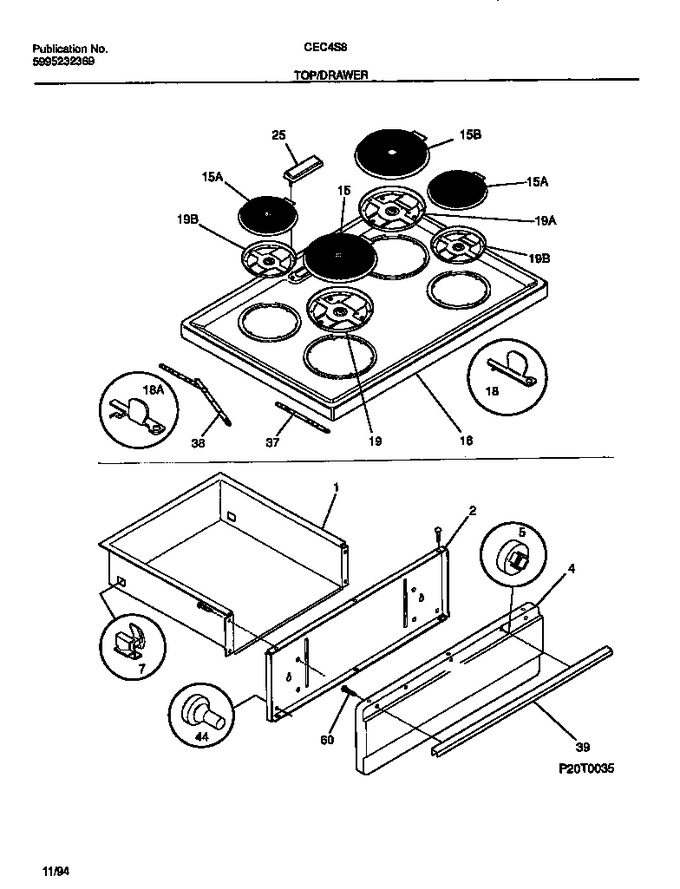

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	3131117		Panel-drawer, White		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8, 18(ab) X 1/2 (non-illustrat		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	5303271910		Element, Surface, Solid, Large/9 Inch		Appelez-nous	-
16	5303271891		Gusset-top Mtg, Rh (non-illustrated)		Appelez-nous	-
16	5303271890		Channel, Top Stiffner (non-illustrated)		Appelez-nous	-
16	5303271908		Main Top, White		Appelez-nous	-
16	5303271892		Gusset-top Mtg, Lh (non-illustrated)		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	5303271911		Pan, Element Shield, Large/9 Inch		Appelez-nous	-
25	3051666		Gasket, Vent Trim (non-illustrated)		Appelez-nous	-
25	08014262		Cover, Vent Trim		Appelez-nous	-
37	5303271888		Strap, Element Mtg		Appelez-nous	-
38	5303271915		Retainer, Anti Turn		Appelez-nous	-
39	5303280334		Handle-drawer/door, Brushed Chrome		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*00884	5303271916		Harness, Top Elements		Appelez-nous	-
*00885	3051195		Nut 4,m Element Mtg		Appelez-nous	-
*00886	3051196		Nut, 6,m Element Mtg		Appelez-nous	-
*00887	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
15A	5303271867		Element, Surface, Solid, Small/6 Inch		Appelez-nous	-
15B	5308014251		Element, Surface, Solid W/opening, 8 Inch, Auto Temp Cont		Appelez-nous	-
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
19A	5303271912		Pan, Element Shield, Med 8/inch		Appelez-nous	-
19B	5303271880		Pan, Element Shield, Sm 6/inch		Appelez-nous	-
