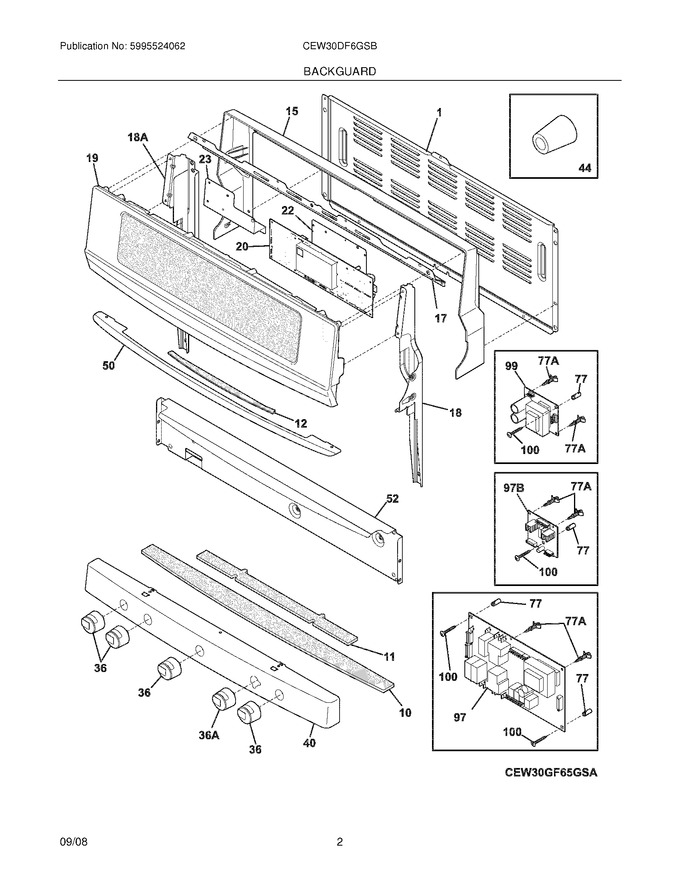

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7316500100		Shield,rear Wall		Appelez-nous	-
10	7316528700		Insulation,manifold Panel		Appelez-nous	-
11	7316528800		Insulation,front Frame		Appelez-nous	-
12	7316538600		Insualtion,deflector		Appelez-nous	-
15	7316500402		Wrapper,backguard ,stainless		Appelez-nous	-
17	7316500301		Shield,upper ,backguard		Appelez-nous	-
18	7316526000		Channel,support ,rh ,backguard		Appelez-nous	-
22	7316520300		Bracket,control Mtg.		Appelez-nous	-
23	7316520400		Bracket,triac Mtg.		Appelez-nous	-
36	316535702		Knob,top Valve ,stainless ,(4)   (Replaces: 7316535702)				$ 160.37
40	7316512707		Panel,manifold ,stainless		Appelez-nous	-
44	7316246500		Spacer,oven		Appelez-nous	-
50	7316537601		Deflector,heat Shield ,stainless		Appelez-nous	-
52	7316514201		Shield,backguard ,black ,inner		Appelez-nous	-
77	7316247900		Spacer,power Board		Appelez-nous	-
100	75303289910		Screw,8a ,1`` ,(7) ,power Board Mtg		Appelez-nous	-
18A	7316526001		Channel,support ,lh ,backguard		Appelez-nous	-
36A	7316535705		Knob,top Valve ,stainless ,dual		Appelez-nous	-
77A	7316114100		Spacer,(4)		Appelez-nous	-
F19	7316538419		Control Panel Assembly,user Interface ,w/ss Trim		Appelez-nous	-
F20	7316516517		Controller,electronic ,es630a		Appelez-nous	-
F97	316443920		Board,relay ,oven Control   (Replaces: 7316443920)			Immediately	$ 403.75
F97B	316519200		Board,variable Speed   (Replaces: 7316519200)			Immediately	$ 256.24
F99	316535200		Board,power Supply ,8v ,(2)   (Replaces: 7316535200)				$ 408.36
FNI	7316525600		Harness,wiring ,backguard		Appelez-nous	-
NI	7316533900		Screw,truss Hd ,8-16 X 1.5 ,(10)		Appelez-nous	-
NI	7316021105		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black		Appelez-nous	-
NI	7316021108		Screw,cup Pt ,8-18 X 0.375 ,chrome		Appelez-nous	-
NI	7316021109		Screw,8-18 X 0.5 ,chrome		Appelez-nous	-
NI	7316089500		Screw,10-16 X .486		Appelez-nous	-
NI	7316525500		Screw,blunt Pnt Ph B ,8-18 X .875 ,(2)		Appelez-nous	-
NI	7316524400		Screw,control Mtg ,6-32 X .25 ,(5)		Appelez-nous	-
