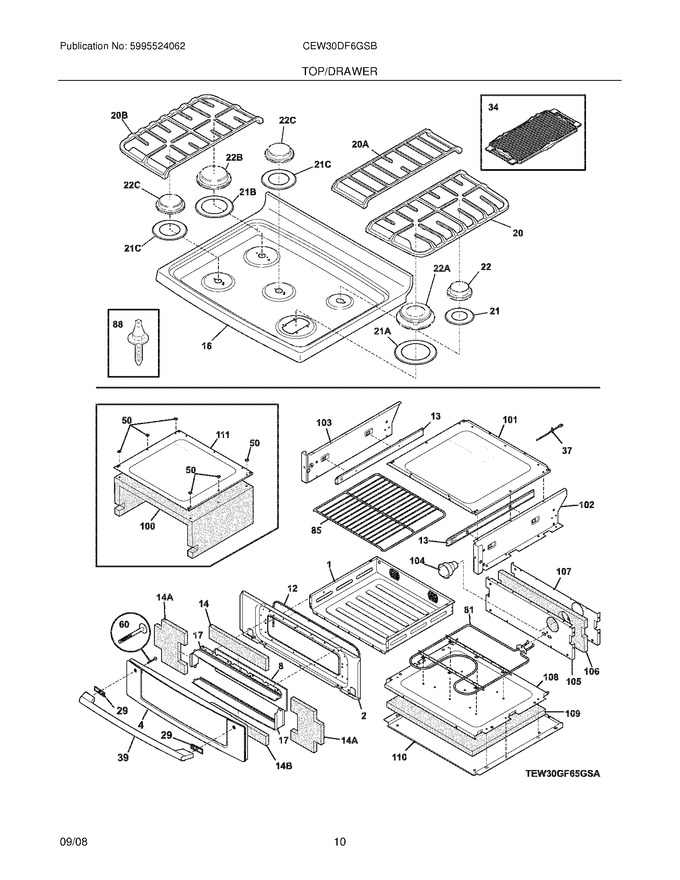

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7316414107		Drawer,mini Oven ,cobalt		Appelez-nous	-
2	7316510301		Liner,drawer ,cobalt ,mini Oven		Appelez-nous	-
4	7316538207		Panel Assembly,drawer Glass ,black ,outer,w/tape		Appelez-nous	-
8	7316431902		Glass,inner Door ,mini Oven		Appelez-nous	-
12	7316410702		Seal,door ,mini Oven		Appelez-nous	-
13	7316449801		Glide,drawer ,mini Oven ,(2)		Appelez-nous	-
14	7316451502		Insulation,door Top ,mini Oven		Appelez-nous	-
16	7316506816		Maintop,assewbly ,stainless		Appelez-nous	-
17	7316508001		Spacer,glass ,(2)		Appelez-nous	-
20	316537800		Grate,double Burner ,lh   (Replaces: 7316537800)				$ 246.02
21	7316524703		Skirt,burner ,5k ,black		Appelez-nous	-
22	7316510902		Cap,5k Burner ,black		Appelez-nous	-
29	7316505401		Spacer,handle ,gray ,(2)		Appelez-nous	-
34	7316534001		Griddle		Appelez-nous	-
39	7241761017		Handle,drawer ,stainless		Appelez-nous	-
50	7316452100		Fastener,push Nut ,(6)		Appelez-nous	-
60	7316513301		Screw,handle Mtg ,10-24 X 2.188 ,(2)		Appelez-nous	-
85	7316411000		Rack,mini Oven		Appelez-nous	-
88	7316099500		Pin,guide ,(2)		Appelez-nous	-
100	7316451300		Insulation,wrapper ,mini Oven		Appelez-nous	-
101	7316410201		Panel,top ,mini Oven		Appelez-nous	-
102	7316450501		Panel,side ,rh ,mini Oven		Appelez-nous	-
103	7316450503		Panel,side ,lh ,mini Oven		Appelez-nous	-
104	7316431500		Light Assembly,mini Oven		Appelez-nous	-
105	7316450803		Panel,back ,mini Oven		Appelez-nous	-
106	7316451400		Insulation,back ,mini Oven		Appelez-nous	-
107	7316451603		Shield,main Back ,mini Oven		Appelez-nous	-
108	7316410101		Panel,bottom ,mini Oven		Appelez-nous	-
109	7316410800		Insulation,floor ,mini Oven		Appelez-nous	-
110	7316410401		Shield,floor ,mini Oven		Appelez-nous	-
111	7316450401		Shield,top ,mini Oven		Appelez-nous	-
14A	7316451501		Insulation,door Sides ,mini Oven ,(2)		Appelez-nous	-
14B	7316414203		Insulation,door Bottom ,mini Oven		Appelez-nous	-
20A	316537900		Grate,burner ,center   (Replaces: 7316537900)				$ 227.28
20B	316538000		Grate,double Burner ,rh   (Replaces: 7316538000)				$ 242.06
21A	7316524700		Skirt,burner ,18k ,black		Appelez-nous	-
21B	7316524701		Skirt,burner ,14k ,black		Appelez-nous	-
21C	7316524702		Skirt,burner ,9.5k ,black ,(2)		Appelez-nous	-
22A	7316511502		Cap,18k Burner ,black ,(2)		Appelez-nous	-
22B	7316511302		Cap,14k Burner ,black ,(2)		Appelez-nous	-
22C	7316511102		Cap,9.5k Burner ,black		Appelez-nous	-
F37	7316217004		Probe,oven Temp ,mini Oven		Appelez-nous	-
F81	7316450903		Element,bake ,mini Oven		Appelez-nous	-
FNI	7316416913		Harness, Mini Oven ,to Probe		Appelez-nous	-
NI	7316021132		Screw,8-18 X 11/16 ,black		Appelez-nous	-
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel   (Replaces: 7316008401)				$ 11.34
NI	7316021105		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black		Appelez-nous	-
NI	7316021110		Screw,8-18 X 0.5 ,black		Appelez-nous	-
