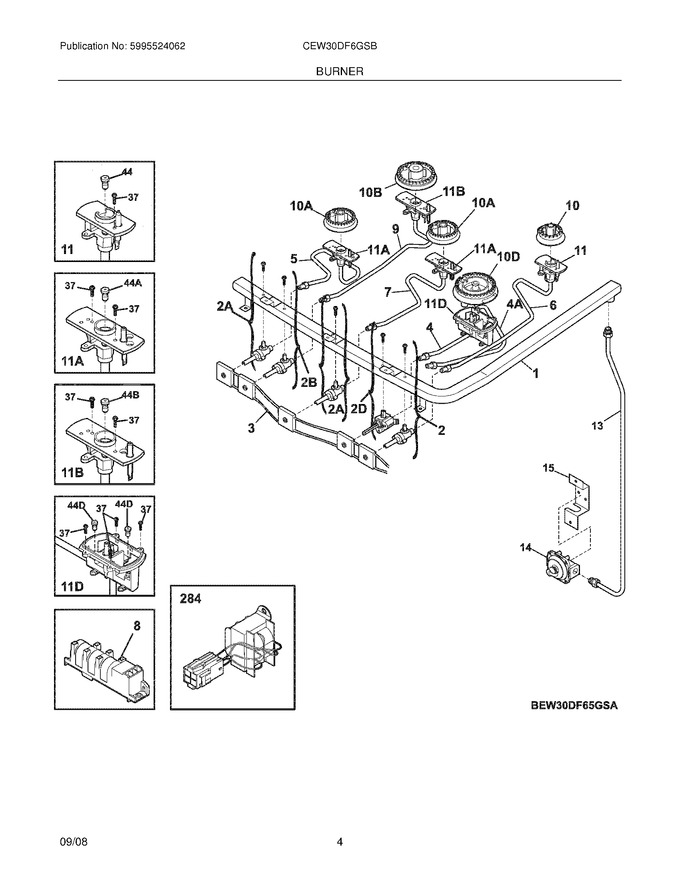

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	808608804		Module,spark   (Replaces: 7318079001)			Immediately	$ 76.06
15	7316091600		Bracket,regulator		Appelez-nous	-
37	316540900		Screw,ignitor Assy Mt ,6-32 X .62   (Replaces: 7316518100)			Immediately	$ 15.17
44	7316523504		Orifice,top Burner ,5k		Appelez-nous	-
284	316536100		Transformer   (Replaces: 7316536100)			Immediately	$ 210.83
44A	7316523500		Orifice,top Burner ,9.5k		Appelez-nous	-
44B	7316523506		Orifice,top Burner ,14k		Appelez-nous	-
44D	7316523508		Orifice,top Burner ,18k		Appelez-nous	-
F1	316505200		Manifold		Appelez-nous	-
F10	7316510800		Burner,sealed ,5k		Appelez-nous	-
F10A	7316511000		Burner,sealed ,9.5k		Appelez-nous	-
F10B	7316511200		Burner,sealed ,14k		Appelez-nous	-
F10D	7316525400		Burner,sealed ,dual ,18k		Appelez-nous	-
F11	7316524800		Ignitor/orifice Assy.,top Burner ,5k ,w/holder		Appelez-nous	-
F11A	7316524900		Ignitor/orifice Assy.,top Burner ,9.5k ,(2),w/holder		Appelez-nous	-
F11B	7316525000		Ignitor/orifice Assy.,top Burner ,14k ,w/holder		Appelez-nous	-
F11D	7316525100		Ignitor/orifice Assy.,top Burner ,18k ,w/holder		Appelez-nous	-
F13	7316405300		Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings		Appelez-nous	-
F14	7318122700		Regulator,pressure		Appelez-nous	-
F2	316520700		Valve,burner ,5k				$ 126.87
F2A	316520701		Valve,burner ,9.5k				$ 131.84
F2B	316520703		Valve,burner ,14.2k				$ 146.01
F2D	316574900		Valve,top Burner ,18k ,dual Port   (Replaces: 316412510)				$ 242.16
F3	7316518200		Harness Assembly,ignitor ,w/switches		Appelez-nous	-
F4	7316509000		Tube,burner ,right Front		Appelez-nous	-
F4A	7316509100		Tube,burner ,right Front		Appelez-nous	-
F5	7316509300		Tube,burner ,rf & Lf ,(2)		Appelez-nous	-
F6	7316509200		Tube,burner ,rr		Appelez-nous	-
F7	7316509400		Tube,burner ,center		Appelez-nous	-
F9	7316526600		Tube,burner ,left Rear		Appelez-nous	-
FNI	7316526900		Harness,ignitor		Appelez-nous	-
FNI	7316064103		Wire,ground Assembly		Appelez-nous	-
NI	7316089500		Screw,10-16 X .486		Appelez-nous	-
NI	7316021104		Screw,hex ,8-18 X 3/8 ,nick ,(3) ,regulator Brkt		Appelez-nous	-
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	7316434900		Shield,valve ,bridge Burner		Appelez-nous	-
NI	7316001003		Screw,ground Wire		Appelez-nous	-
NI	7316021105		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black		Appelez-nous	-
NI	7316021110		Screw,8-18 X 0.5 ,black		Appelez-nous	-
NI	7316536300		Bracket,spark Module		Appelez-nous	-
