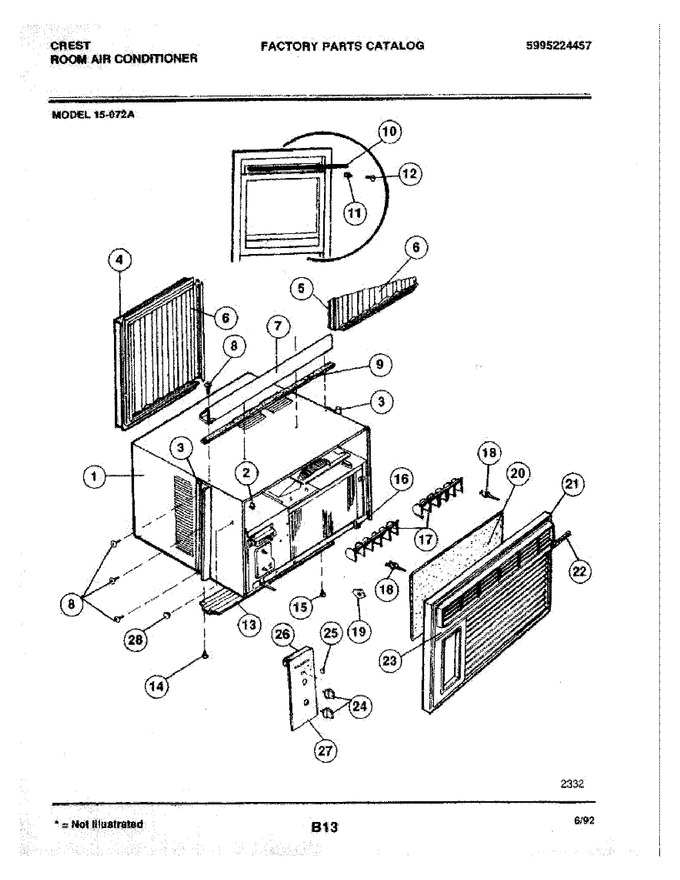

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303270060		Wrapper		Appelez-nous	-
2	08010928		Nut		Appelez-nous	-
3	5303270073		Retainer		Appelez-nous	-
4	5303282370		Frame-lh		Appelez-nous	-
5	5303282371		Frame-rh		Appelez-nous	-
6	5303270075		Accordian Closure		Appelez-nous	-
7	5303270064		Rail Top		Appelez-nous	-
8	3015312		Screw		Appelez-nous	-
9	08016226		Seal		Appelez-nous	-
10	3002603		Gasket		Appelez-nous	-
11	5303211056		Bracket Window		Appelez-nous	-
12	3002803		Screw-window Stop		Appelez-nous	-
13	5303270072		Rail Bottom		Appelez-nous	-
14	5308002974		Screw		Appelez-nous	-
15	08016080		Screw-leveling		Appelez-nous	-
16	5303001784		Clip-front To Base		Appelez-nous	-
17	08014228		Louver		Appelez-nous	-
18	08013699		Handle		Appelez-nous	-
19	3203495		Clip-filter		Appelez-nous	-
20	3016117		Filter		Appelez-nous	-
21	5303289376		Front Cab-complete		Appelez-nous	-
22	08007482		Seal-mullion		Appelez-nous	-
23	5303289377		Insert Mullion		Appelez-nous	-
24	5303284039		Knob-control		Appelez-nous	-
25	5303207312		Knob-slide		Appelez-nous	-
26	5303001861		Seal		Appelez-nous	-
27	5303289375		Dial Plate		Appelez-nous	-
28	5303271346		Screw-front		Appelez-nous	-
