01 - Cover
03 - Wrapper
04 - Control Panel
05 - Motor/fan

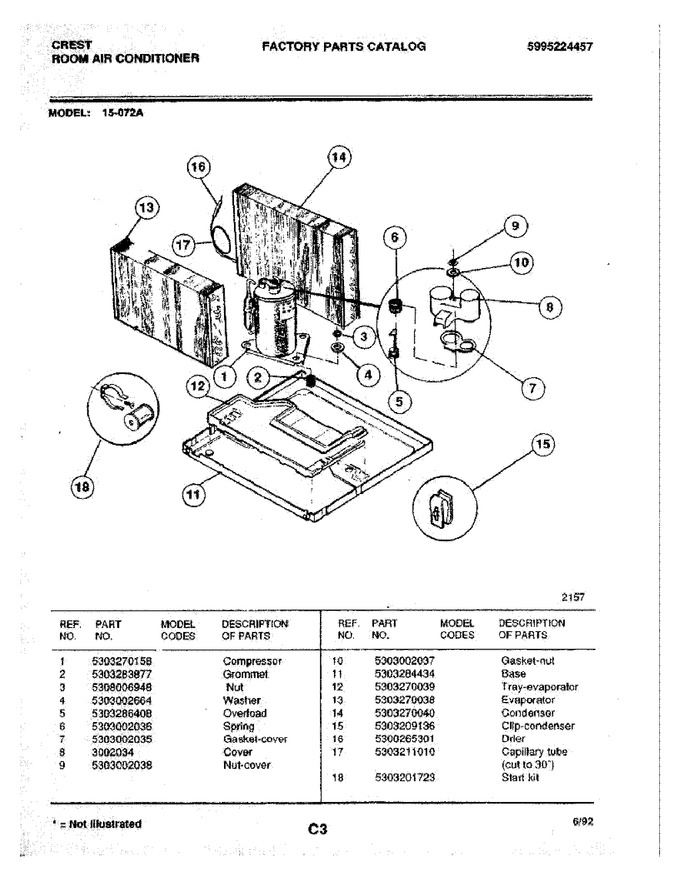

06 - Compressor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270158 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet |
|
- | |||||
| 3 | 5308006948 | Nut |
|
- | |||||
| 4 | 5303002664 | Washer |
|
- | |||||
| 5 | 5303286408 | Overload |
|
- | |||||
| 6 | 5303002036 | Spring |
|
- | |||||
| 7 | 5303002035 | Gasket-cover |
|
- | |||||
| 8 | 3002034 | Cover |
|
- | |||||
| 9 | 5303002038 | Nut-cover |
|
- | |||||
| 10 | 5303002037 | Gasket-nut |
|
- | |||||
| 11 | 5303284434 | Base |
|
- | |||||
| 12 | 5303270039 | Tray-evaporator |
|
- | |||||
| 13 | 5303270038 | Evaporator |
|
- | |||||
| 14 | 5303270040 | Condenser |
|
- | |||||
| 15 | 5303209136 | Clip-condenser |
|
- | |||||
| 16 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 17 | 5303211010 | Capillary Tube (cut To 30``) |
|
- | |||||
| 18 | 5303201723 | Starter Kit |
|
- |
