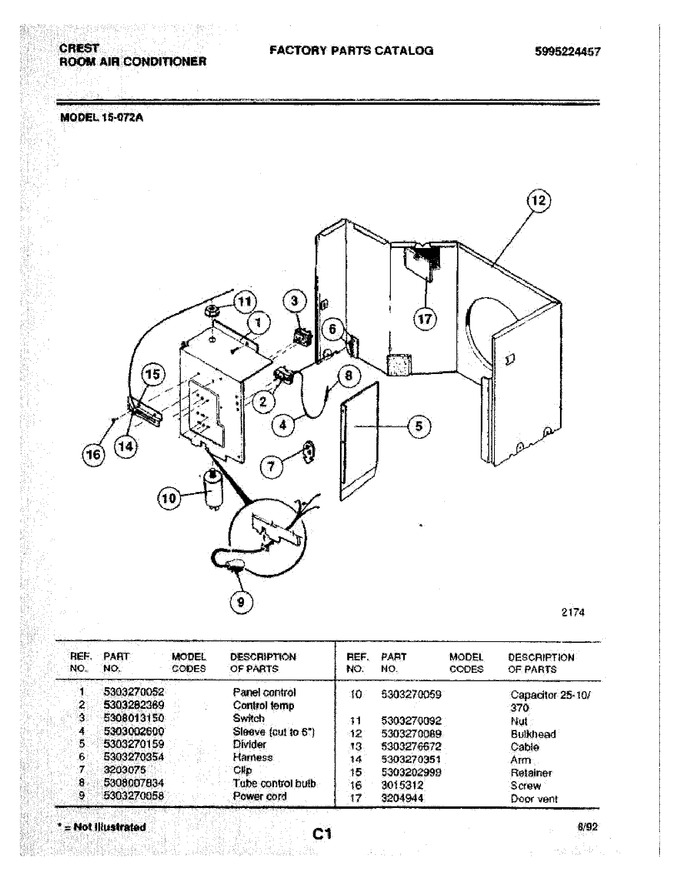

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270052 | Panel Control |
|
- | |||||
| 2 | 5303282369 | Control Temp |
|
$ 91.90 | |||||
| 3 | 5308013150 | Switch-selector |
|
- | |||||
| 4 | 5303002600 | Sleeve-cut To 6`` |
|
- | |||||
| 5 | 5303270159 | Divider |
|
- | |||||
| 6 | 5303270354 | Harness |
|
- | |||||
| 7 | 3203075 | Clip |
|
- | |||||
| 8 | 5308007834 | Tube Control Bulb |
|
- | |||||
| 9 | 5303270058 | Power Cord |
|
- | |||||
| 10 | 5303270059 | Capacitor 25-10/370 |
|
- | |||||
| 11 | 5303270092 | Nut |
|
- | |||||
| 12 | 5303270089 | Bulkhead |
|
- | |||||
| 13 | 5303276672 | Cable |
|
- | |||||
| 14 | 5303270351 | Arm |
|
- | |||||
| 15 | 5303202999 | Retainer |
|
- | |||||
| 16 | 3015312 | Screw-actuator |
|
- | |||||
| 17 | 3204944 | Door-vent |
|
- |
