SELECT A DIAGRAM

01 - Cover


03 - Wrapper


05 - Control Panel


06 - Motor/fan


07 - Condenser


08 - Compressor

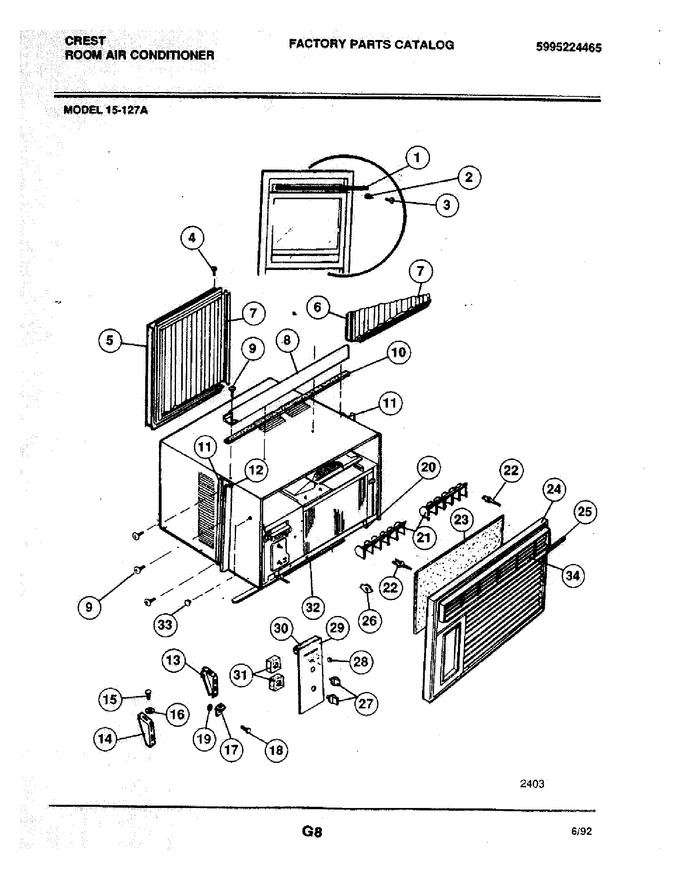

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3002603		Seal-window		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
3	3002803		Screw		Appelez-nous	-
4	3002801		Screw		Appelez-nous	-
5	3202497		Frame Rh		Appelez-nous	-
6	3202964		Frame-lh		Appelez-nous	-
7	5303211382		Accordian Closure		Appelez-nous	-
8	3001873		Rail, Top		Appelez-nous	-
9	3015312		Screw		Appelez-nous	-
10	5303207200		Seal		Appelez-nous	-
11	3202966		Retainer		Appelez-nous	-
12	5303276728		Seal,retainer		Appelez-nous	-
13	5303284689		Bracket-support Rh		Appelez-nous	-
14	5303284690		Bracket-support Lh		Appelez-nous	-
15	5303281649		Screw		Appelez-nous	-
16	3017023		Nut-locking		Appelez-nous	-
17	3001815		Bracket		Appelez-nous	-
18	3002803		Screw - Sash Lock		Appelez-nous	-
19	3007759		Nut		Appelez-nous	-
20	5308010914		Clip-front To Base		Appelez-nous	-
21	5303276681		Louver		Appelez-nous	-
22	08013699		Handle		Appelez-nous	-
23	5303001809		Filter		Appelez-nous	-
24	5303289583		Front Complete		Appelez-nous	-
25	5308014101		Seal-mullion		Appelez-nous	-
26	3203495		Clip-filter		Appelez-nous	-
27	5303284039		Knob-control		Appelez-nous	-
28	5303207312		Knob-slide		Appelez-nous	-
29	5303289588		Dial Plate		Appelez-nous	-
30	5303001984		Seal		Appelez-nous	-
31	5303001775		Spacer		Appelez-nous	-
32	5314949603		Seal Chassis Btm		Appelez-nous	-
33	5303271346		Screw-front Mtg		Appelez-nous	-
34	5303289073		Insert Mullion		Appelez-nous	-
	5303925121		Kit-window Mtg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
