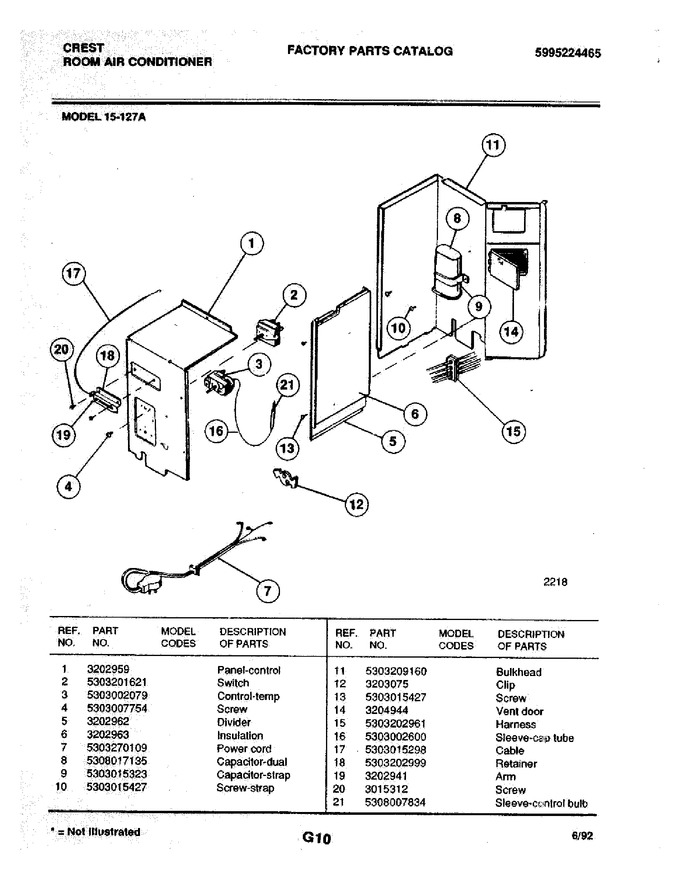

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Wrapper
05 - Control Panel
06 - Motor/fan
07 - Condenser
08 - Compressor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202959 | Panel-control |
|
- | |||||
| 2 | 5303201621 | Switch |
|
- | |||||
| 3 | 5303002079 | Control Temp |
|
- | |||||
| 4 | 5303007754 | Screw |
|
- | |||||
| 5 | 3202962 | Divider |
|
- | |||||
| 6 | 3202963 | Insulation |
|
- | |||||
| 7 | 5303270109 | Power Cord |
|
- | |||||
| 8 | 5308017135 | Capacitor-dual |
|
- | |||||
| 9 | 5303015323 | Capacitor (strap) |
|
- | |||||
| 10 | 5303015427 | Screw-strap |
|
- | |||||
| 11 | 5303209160 | Bulkhead |
|
- | |||||
| 12 | 3203075 | Clip |
|
- | |||||
| 13 | 5303015427 | Screw |
|
- | |||||
| 14 | 3204944 | Vent Door |
|
- | |||||
| 15 | 5303202961 | Harness |
|
- | |||||
| 16 | 5303002600 | Sleeve - Cap Tube |
|
- | |||||
| 17 | 5303015298 | Cable |
|
- | |||||
| 18 | 5303202999 | Retainer |
|
- | |||||
| 19 | 3202941 | Arm |
|
- | |||||
| 20 | 3015312 | Screw |
|
- | |||||
| 21 | 5308007834 | Sleeve-control Bulb |
|
- |
