New Model Search:

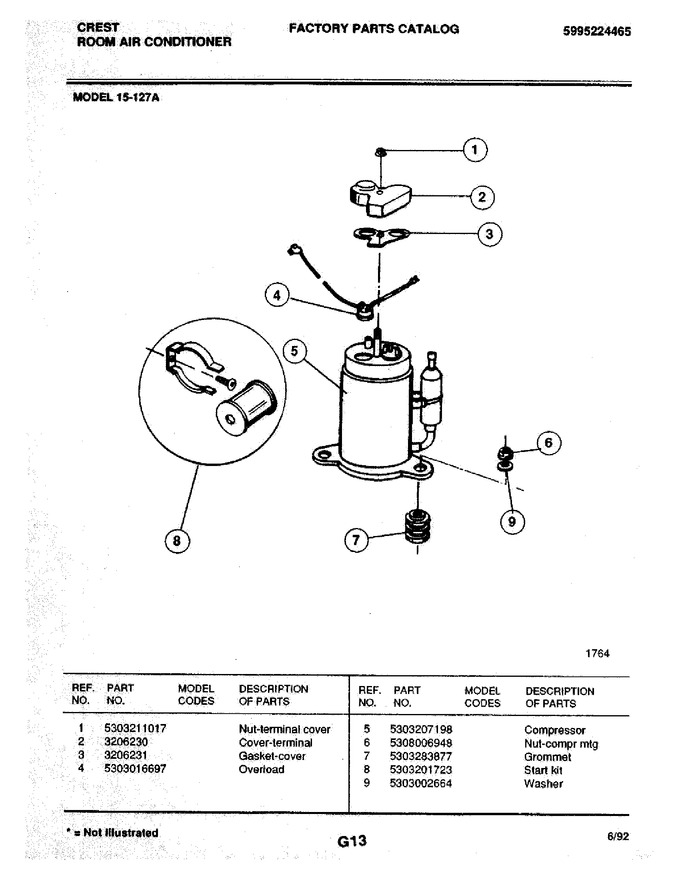

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303211017 | Nut,terminal Cover |
|
- | |||||
| 2 | 3206230 | Cover-terminal |
|
- | |||||
| 3 | 3206231 | Gasket-cover |
|
- | |||||
| 4 | 5303016697 | Overload |
|
- | |||||
| 5 | 5303207198 | Compressor |
|
- | |||||
| 6 | 5308006948 | Nut-compr Mtg |
|
- | |||||
| 7 | 5303283877 | Grommet |
|
- | |||||
| 8 | 5303201723 | Starter Kit |
|
- | |||||
| 9 | 5303002664 | Washer |
|
- |
