SELECT A DIAGRAM

01 - Cover


03 - Wrapper


04 - Control Panel


05 - Motor/fan


06 - Compressor


07 - Window Mounting Assembly

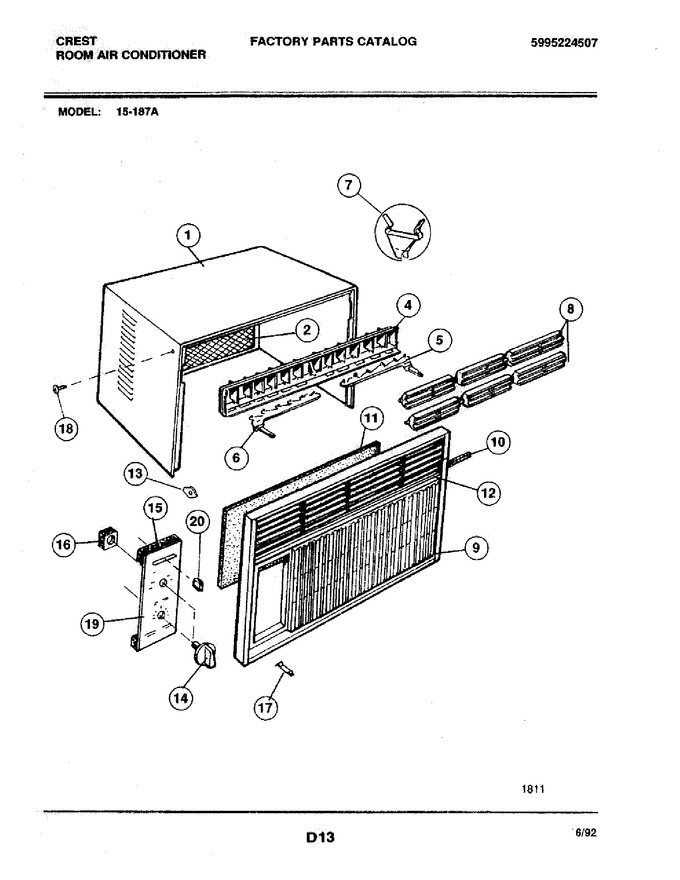

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303015315		Wrapper		Appelez-nous	-
2	5303210207		Grill,rear		Appelez-nous	-
4	5303002459		Louver W/link		Appelez-nous	-
5	5303002162		Link-rh		Appelez-nous	-
6	5303002163		Link-lh		Appelez-nous	-
7	5303001844		Clip-link		Appelez-nous	-
8	5308017160		Louver		Appelez-nous	-
9	5303289928		Front-rac		Appelez-nous	-
10	08017353		Seal - Mullion		Appelez-nous	-
10	08017132		Seal Evap. Outlet		Appelez-nous	-
11	5303014139		Filter		Appelez-nous	-
12	5303283760		Insert-mullion		Appelez-nous	-
13	3203495		Clip-filter		Appelez-nous	-
14	5303284039		Knob-control		Appelez-nous	-
15	5303001984		Seal		Appelez-nous	-
16	5303001775		Spacer		Appelez-nous	-
17	5308010914		Clip-front To Base		Appelez-nous	-
18	5303271346		Screw-front Mounting		Appelez-nous	-
19	5303283761		Dial Plate		Appelez-nous	-
20	5303207312		Knob-slide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
