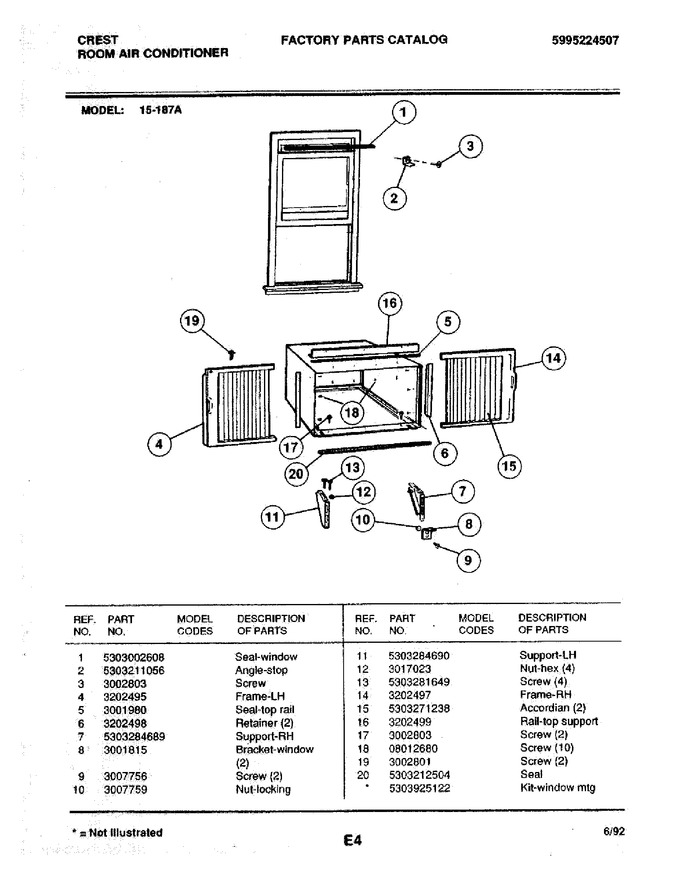

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Wrapper
04 - Control Panel
05 - Motor/fan
06 - Compressor
07 - Window Mounting Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303002608 | Seal - Window |
|
- | |||||
| 2 | 5303211056 | Angle-stop |
|
- | |||||
| 3 | 3002803 | Screw |
|
- | |||||
| 4 | 3202495 | Frame Lh |
|
- | |||||
| 5 | 3001980 | Seal - Top Rail |
|
- | |||||
| 6 | 3202498 | Retainer |
|
- | |||||
| 7 | 5303284689 | Support-rh |
|
- | |||||
| 8 | 3001815 | Bracket - Window |
|
- | |||||
| 9 | 3007756 | Screw |
|
- | |||||
| 10 | 3007759 | Nut Locking |
|
- | |||||
| 11 | 5303284690 | Support-lh |
|
- | |||||
| 12 | 3017023 | Nut, Hex |
|
- | |||||
| 13 | 5303281649 | Screw |
|
- | |||||
| 14 | 3202497 | Frame Rh |
|
- | |||||
| 15 | 5303271238 | Accordian |
|
- | |||||
| 16 | 3202499 | Rail-top Support |
|
- | |||||
| 17 | 3002803 | Screw |
|
- | |||||
| 18 | 08012680 | Screw |
|
- | |||||
| 19 | 3002801 | Screw |
|
- | |||||
| 20 | 5303212504 | Seal |
|
- | |||||
| 5303925122 | Kit Window Mtg |
|
- |
