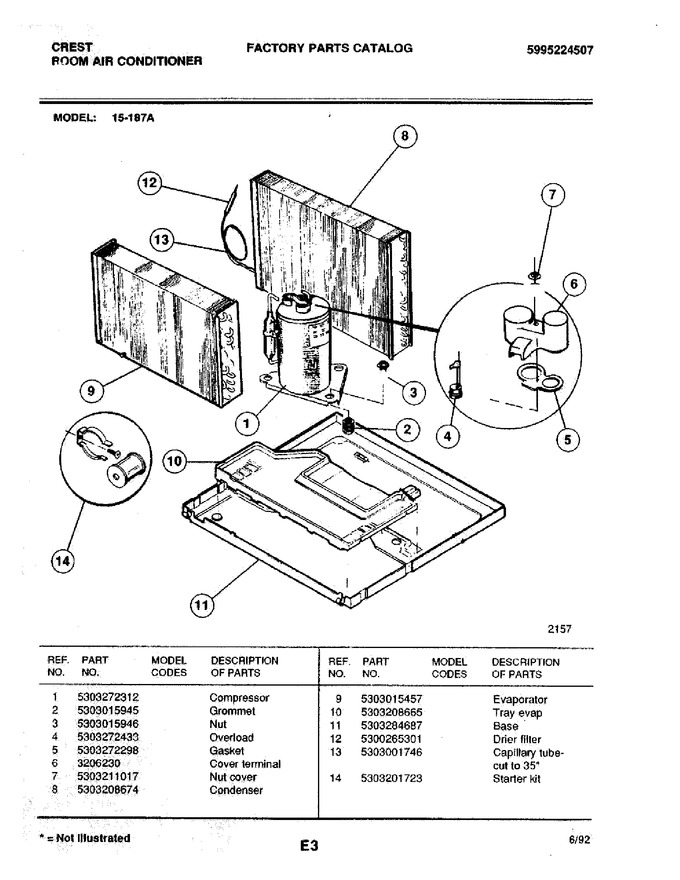

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Wrapper
04 - Control Panel
05 - Motor/fan
06 - Compressor
07 - Window Mounting Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272312 | Compressor |
|
- | |||||
| 2 | 5303015945 | Grommet |
|
- | |||||
| 3 | 5303015946 | Nut |
|
- | |||||
| 4 | 5303272433 | Overload |
|
- | |||||
| 5 | 5303272298 | Gasket |
|
- | |||||
| 6 | 3206230 | Cover-terminal |
|
- | |||||
| 7 | 5303211017 | Nut-cover |
|
- | |||||
| 8 | 5303208674 | Condenser |
|
- | |||||
| 9 | 5303015457 | Evaporator |
|
- | |||||
| 10 | 5303208665 | Tray-evap |
|
- | |||||
| 11 | 5303284687 | Base |
|
- | |||||
| 12 | 5300265301 | Drier-filter |
|
$ 284.30 | |||||
| 13 | 5303001746 | Capillary Tube-cut To 35`` |
|
- | |||||
| 14 | 5303201723 | Starter Kit |
|
- |
