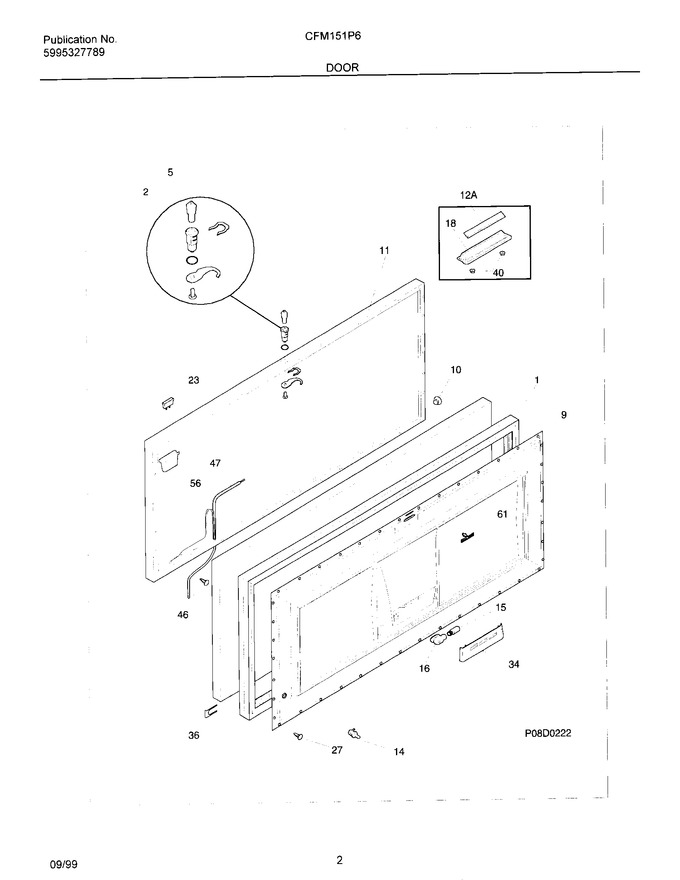

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket-door, White   (Replaces: 216481201)				$ 204.03
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216686904		Panel-inner Door,frzr				$ 39.53
10	216141101		Plug Button, White				$ 2.57
11	216129905		Panel-outer Door,white		Appelez-nous	-
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	216684000		Socket-light/lamp		Appelez-nous	-
18	216049501		Handle,white		Appelez-nous	-
23	5308002706		Light-signal,amber				$ 39.11
27	5303212828		Clip,panel				$ 16.63
34	216160400		Shield-light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	216686000		Harness-lid/defrost		Appelez-nous	-
56	5308037857		Sealing Cap		Appelez-nous	-
61	5309948955		Clip-panel				$ 11.53
	5303925098		Insulation				$ 120.65
12A	216373000		Frame-nameplate				$ 4.04

    View Diagram in Separate Window       Print Part List
