SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

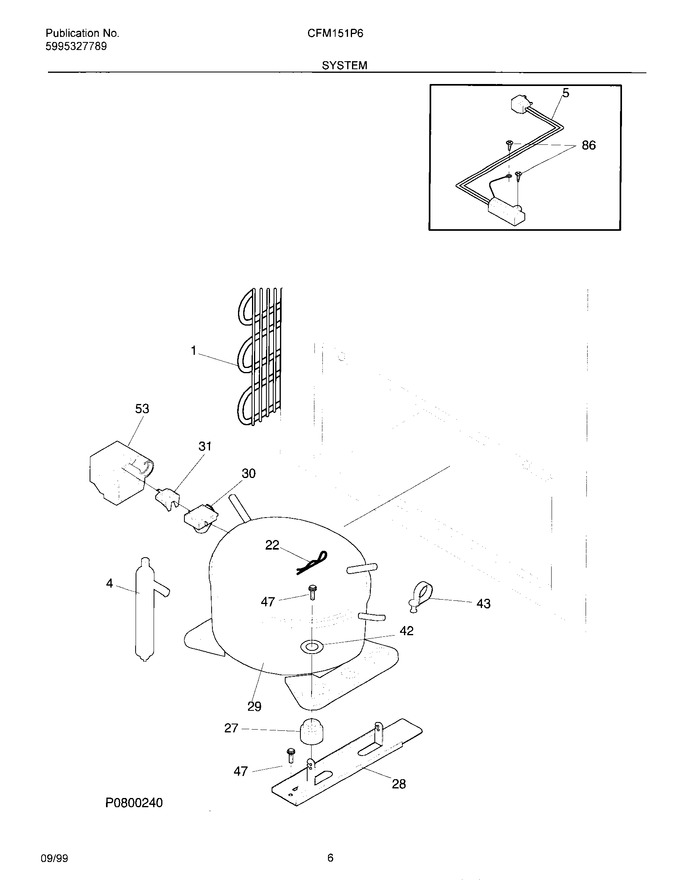

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925238		Condenser				$ 467.78
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216676600		Harness,electrical		Appelez-nous	-
22	216056400		Clip, Spring Mtg		Appelez-nous	-
27	218513300		Grommet-compr Mtg				$ 42.53
28	5303212615		Support, Compressor		Appelez-nous	-
29	216639800		Compressor,w/o Electricals		Appelez-nous	-
30	216594300		Starter				$ 28.92
31	216100115		Overload Protector				$ 23.11
42	216232700		Washer-flat		Appelez-nous	-
43	5303212614		Clip Harness				$ 2.88
47	08016776		Screw-compresor,ind Hex Wshr Hd ,10-32t X 1/2,support		Appelez-nous	-
53	08006982		Cover-terminal		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
	5303298960		Spacer, Compressor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
