SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

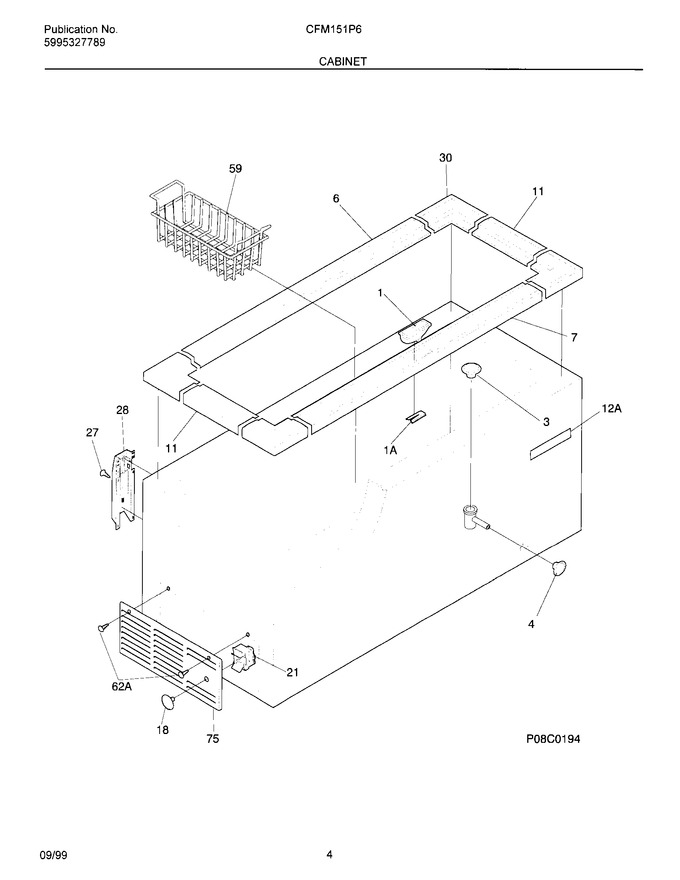

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303208488		Latch, Door		Appelez-nous	-
3	216073900		Plug-drain,interior		Appelez-nous	-
4	216502600		Plug-drain,exterior			Immediately	$ 17.35
6	216111000		Breaker, Hinge Side		Appelez-nous	-
7	216111600		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker,white ,ends		Appelez-nous	-
18	216591602		Knob,temp Control		Appelez-nous	-
21	216532100		Control-temperature				$ 9.70
27	216629601		Screw-hinge   (Replaces: 216629600)				$ 13.01
28	297321900		Hinge   (Replaces: 216035200)				$ 90.01
29	216080300		Basket		Appelez-nous	-
30	216110700		Breaker,white ,corners				$ 28.45
12A	216373000		Frame-nameplate				$ 4.04
1A	216080800		Support, Lock		Appelez-nous	-
62A	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46

    View Diagram in Separate Window       Print Part List
