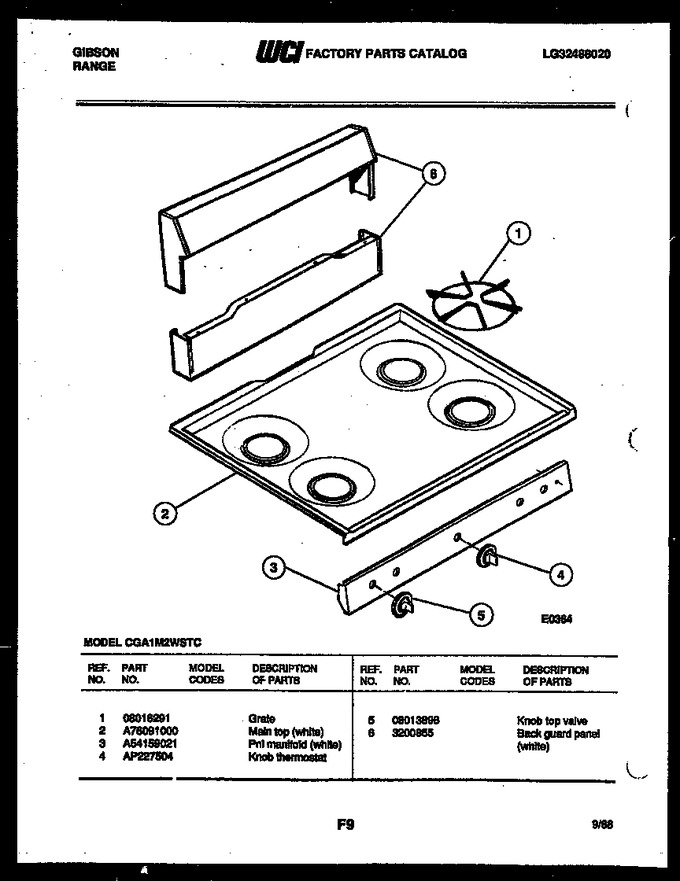

02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Broiler Drawer Parts
05 - Burner Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08016291 | Grate |
|
- | |||||
| 2 | A76091000 | Main Top (white) |
|
- | |||||
| 3 | A54159021 | Pnl Manifold (white) |
|
- | |||||
| 4 | AP227504 | Knob Thermostat |
|
- | |||||
| 5 | 08013898 | Knob - Top Valve |
|
- | |||||
| 6 | 3200855 | Back Guard Panel (white) |
|
- |
