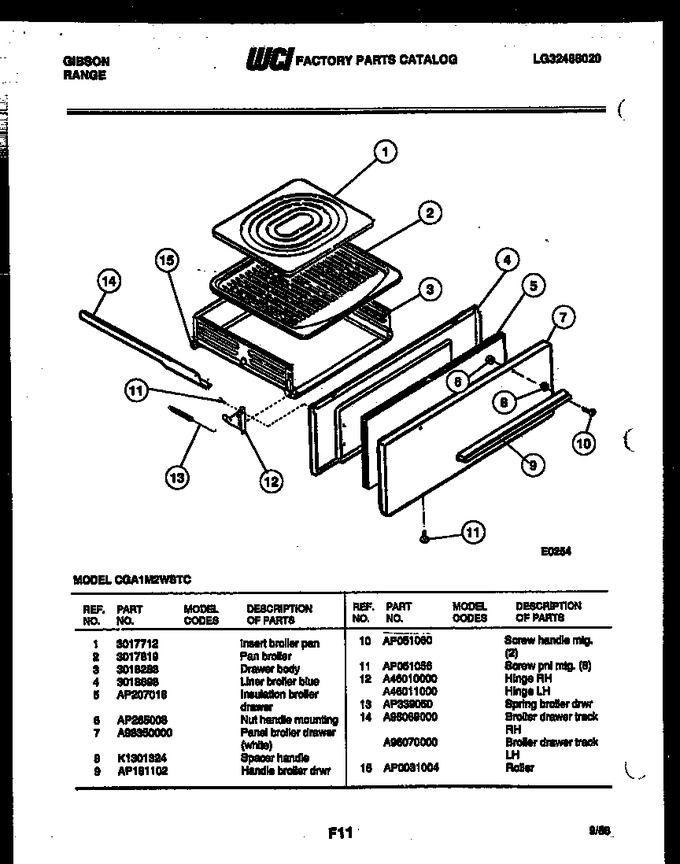

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017712		Insert-broiler Pan		Appelez-nous	-
2	3017819		Pan - Broiler		Appelez-nous	-
3	3018283		Drawer Body		Appelez-nous	-
4	3018698		Liner Broiler Blue		Appelez-nous	-
5	AP207018		Insulation Broiler Drawer		Appelez-nous	-
6	AP265008		Nut Handle Mounting		Appelez-nous	-
7	A98350000		Panel Broiler Drawer (white)		Appelez-nous	-
8	K1301324		Spacer-handle		Appelez-nous	-
9	AP181102		Handle Broiler Drwr		Appelez-nous	-
10	AP051060		Screw Handle Mtg. (2)		Appelez-nous	-
11	AP051056		Screw Pnl Mtg. (8)		Appelez-nous	-
12	A46010000		Hinge-rh		Appelez-nous	-
13	AP339050		Spring Broiler Drwr		Appelez-nous	-
14	A96069000		Broiler Drawer Track Rh		Appelez-nous	-
15	AP0031004		Roller		Appelez-nous	-
12A	A46011000		Hinge-lh		Appelez-nous	-
14A	A96070000		Broiler Drawer Track Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
