02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Broiler Drawer Parts
05 - Burner Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:

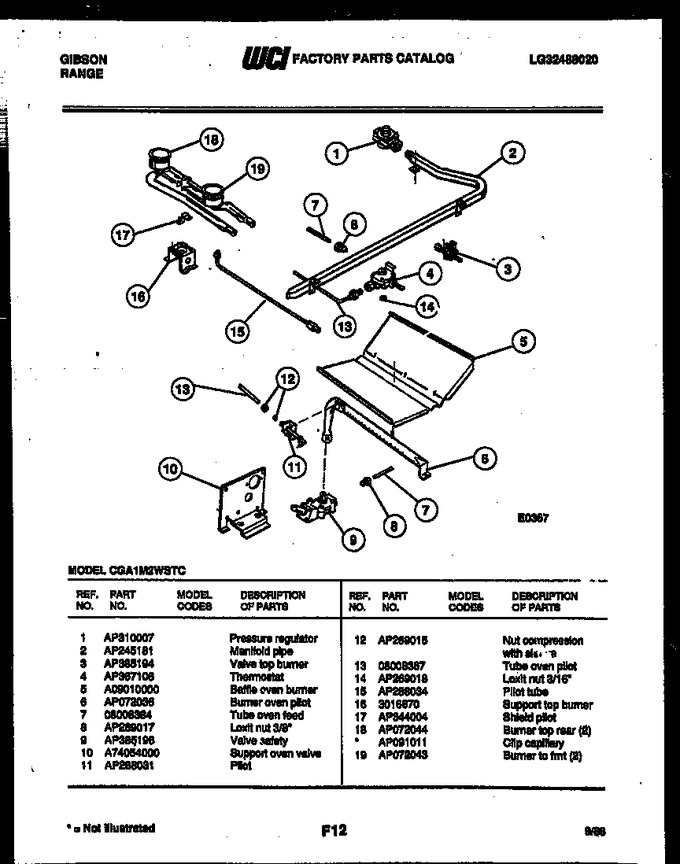

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | AP310007 | Pressure Regulator |
|
- | |||||
| 2 | AP245181 | Manifold Pipe |
|
- | |||||
| 3 | AP385194 | Valve-top Burner |
|
- | |||||
| 4 | AP367106 | Thermostat |
|
- | |||||
| 5 | A09010000 | Baffle Oven Burner |
|
- | |||||
| 6 | AP072036 | Burner Oven Pilot |
|
- | |||||
| 7 | 08008384 | Tube Oven Feed |
|
- | |||||
| 8 | AP269017 | Loxit Nut 3/8`` |
|
- | |||||
| 9 | AP385196 | Valve Safety |
|
- | |||||
| 10 | A74054000 | Support Oven Valve |
|
- | |||||
| 11 | AP288031 | Pilot |
|
- | |||||
| 12 | AP269015 | Nut Compression With Sleeve |
|
- | |||||
| 13 | 08008367 | Tube Oven Pilot |
|
- | |||||
| 14 | AP269018 | Loxit Nut 3/16`` |
|
- | |||||
| 15 | AP288034 | Pilot Tube |
|
- | |||||
| 16 | 3016870 | Support - Top Burner |
|
- | |||||
| 17 | AP344004 | Shield-pilot |
|
- | |||||
| 18 | AP072044 | Burner Top Rear (2) |
|
- | |||||
| 19 | AP072043 | Burner To Frnt (2) |
|
- | |||||
| 18A | AP091011 | Clip Capillary (non-illustrated) |
|
- |
