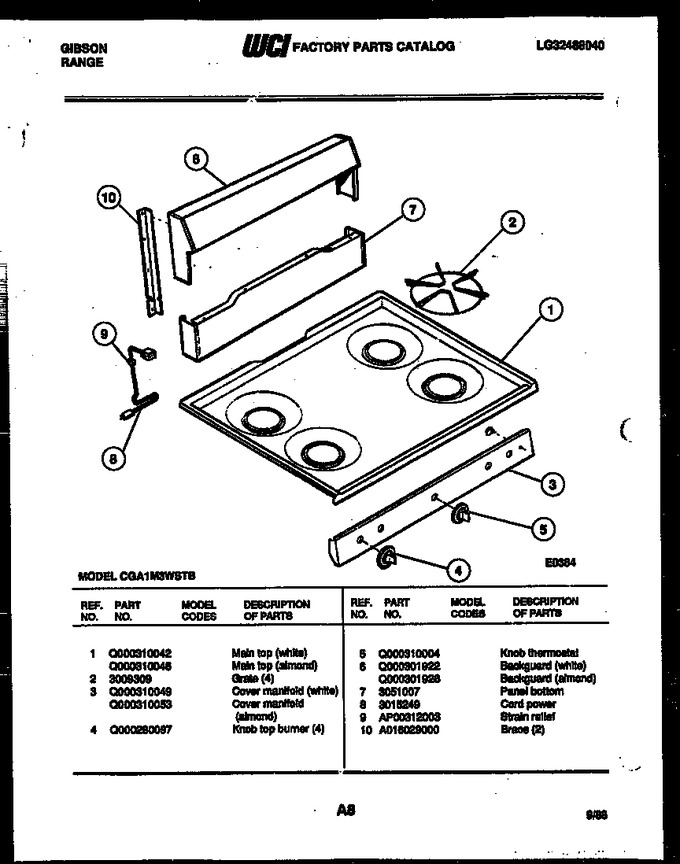

02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Burner Parts
05 - Oven Body
06 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Q000310046 | Main Top Almond |
|
- | |||||
| 1 | Q000310042 | Main Top White |
|
- | |||||
| 2 | 3009309 | Grate (4) |
|
- | |||||
| 3 | Q000310049 | Cover Manifold White |
|
- | |||||
| 3 | Q000310053 | Cover Manifold (almond) |
|
- | |||||
| 4 | Q000280097 | Knob Top Burner (4) |
|
- | |||||
| 5 | Q000310004 | Knob Thermostat |
|
- | |||||
| 6 | Q000301926 | Backguard Almond |
|
- | |||||
| 6 | Q000301922 | Backguard White |
|
- | |||||
| 7 | 3051007 | Panel-bottom |
|
- | |||||
| 8 | 3015249 | Cord - Power |
|
- | |||||
| 9 | AP00312003 | Strain Relief |
|
- | |||||
| 10 | A016029000 | Brace (2) |
|
- |
