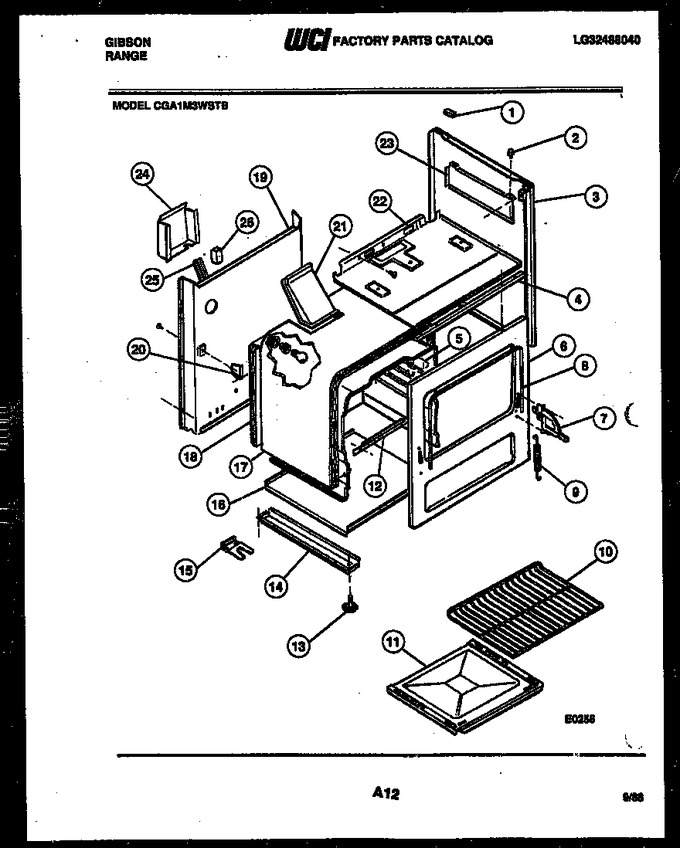

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	AP172002		Grommet		Appelez-nous	-
3	A64013000		Bodyside Lh & Rh (white)		Appelez-nous	-
4	A74062000		Support-control Pnl		Appelez-nous	-
5	3018284		Oven Liner-side Rh		Appelez-nous	-
6	3017713		Front Frame		Appelez-nous	-
7	A96067000		Hinge Door Lh		Appelez-nous	-
8	AP326050		Seal - Oven Door		Appelez-nous	-
9	AP339053		Spring Hinge Lh/rh		Appelez-nous	-
10	3016158		Rack-oven		Appelez-nous	-
11	3018697		Oven-bottom		Appelez-nous	-
12	A74055000		Support Oven Btm		Appelez-nous	-
13	3051080		Leveling Leg		Appelez-nous	-
14	3051081		Rail Base Lh/rh		Appelez-nous	-
15	3131041		Bracket-installation		Appelez-nous	-
16	A11049000		Main Bottom		Appelez-nous	-
17	3131043		Insulation-wrap		Appelez-nous	-
18	3131044		Insulation-back		Appelez-nous	-
19	A05085000		Back Main		Appelez-nous	-
20	A74060000		Support-oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017573		Burner Box		Appelez-nous	-
23	A61044000		Shield Heat B/b Rh		Appelez-nous	-
24	A32136000		Cover Spark Module		Appelez-nous	-
25	A29017000		Channel Wire		Appelez-nous	-
26	3015197		Spark - Module		Appelez-nous	-
23A	A61074000		Shield Heat B/b Lh		Appelez-nous	-
23B	3131791		Clip - Back Splash Corner (non-illustrated)				$ 19.01
5A	3018285		Oven Liner-side Lh		Appelez-nous	-
5B	3018700		Oven Liner-top		Appelez-nous	-
5C	3018699		Oven Liner-back		Appelez-nous	-
7A	A96068000		Hinge Door Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
