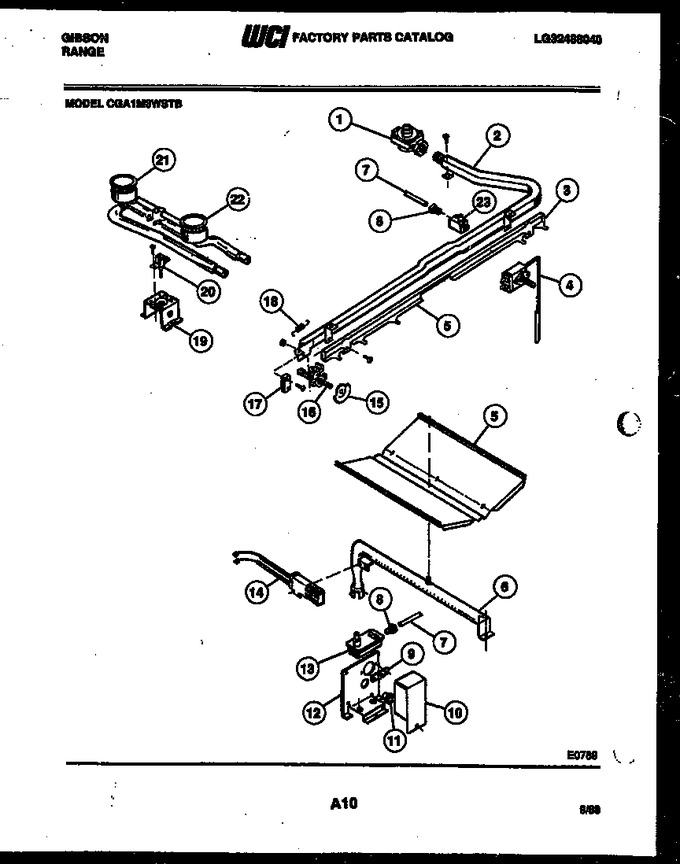

02 - Backguard And Cooktop Parts
03 - Door Parts
04 - Burner Parts
05 - Oven Body
06 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | AP310007 | Pressure Regulator |
|
- | |||||
| 2 | 3131081 | Manifold Pipe |
|
- | |||||
| 3 | 3131082 | Bar Slide |
|
- | |||||
| 4 | 08013926 | Thermostat |
|
- | |||||
| 5 | A09010000 | Baffle Oven Burner |
|
- | |||||
| 6 | AP072025 | Burner-oven |
|
- | |||||
| 7 | AP377129 | Tubing-oven Supply 3/8 |
|
- | |||||
| 8 | AP269017 | Loxit Nut 3/8`` |
|
- | |||||
| 9 | AP042025 | Terminal Block |
|
- | |||||
| 10 | A32130000 | Cover-safety Valve |
|
- | |||||
| 11 | 3051101 | Bushing - Snap |
|
- | |||||
| 12 | A74054000 | Support-safety Valve |
|
- | |||||
| 13 | AP385181 | Valve Safety |
|
- | |||||
| 14 | 12400035 | Igniter-oven\ (Replaces: 08009420) |
|
Immediately | $ 60.44 | ||||
| 15 | A22002000 | Cam-top Burner (4) |
|
- | |||||
| 16 | AP385194 | Valve-top Burner |
|
- | |||||
| 17 | 08013925 | Switch - Micro |
|
- | |||||
| 18 | AP339058 | Spring-slide Bar |
|
- | |||||
| 19 | 3016870 | Support - Top Burner |
|
- | |||||
| 20 | 3015196 | Igniter 36`` |
|
- | |||||
| 21 | AP072044 | Top Burner-rear |
|
- | |||||
| 22 | AP072043 | Top Burner-front |
|
- | |||||
| 23 | AP385174 | Valve, Shut Off |
|
- |
