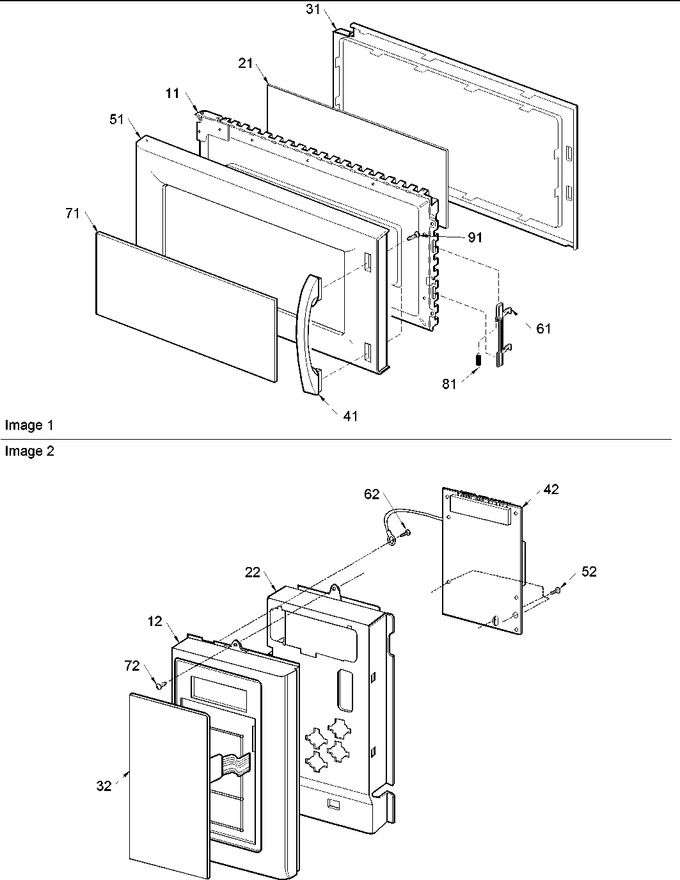

01 - Door & Controller
02 - Installation
03 - Interior
04 - Interior & Latch Board
05 - Miscellaeous Information
06 - Oven Cavity
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | R9900240 | Frame, Door |
|
- | |||||
| 12 | R9900248 | Panel, Control (wht) |
|
- | |||||
| 21 | WPW10146437 | Tape, Seal (Replaces: R9900242) |
|
$ 79.74 | |||||
| 22 | R9900262 | Bracket, Control Panel |
|
- | |||||
| 31 | R9900246 | Cover, Choke |
|
- | |||||
| 32 | R0131483 | Switch, Membrane (wht) |
|
- | |||||
| 41 | R9900252 | Handle, Door (wht) |
|
- | |||||
| 42 | R0131484 | Board, Control |
|
- | |||||
| 51 | R9900256 | Panel, Door (wht) |
|
$ 110.10 | |||||
| 52 | R0131083 | Screw, Tapping Pan Head |
|
- | |||||
| 61 | R9900260 | Latch, Door |
|
- | |||||
| 62 | R0654183 | Screw, Truss Hd |
|
- | |||||
| 71 | R0131479 | Glass, Door (wht) |
|
- | |||||
| 72 | R9800359 | Screw, Tap Th |
|
- | |||||
| 81 | R0131481 | Spring, Latch |
|
- | |||||
| 91 | R0131083 | Screw, Tapping Pan Head |
|
- |
