View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

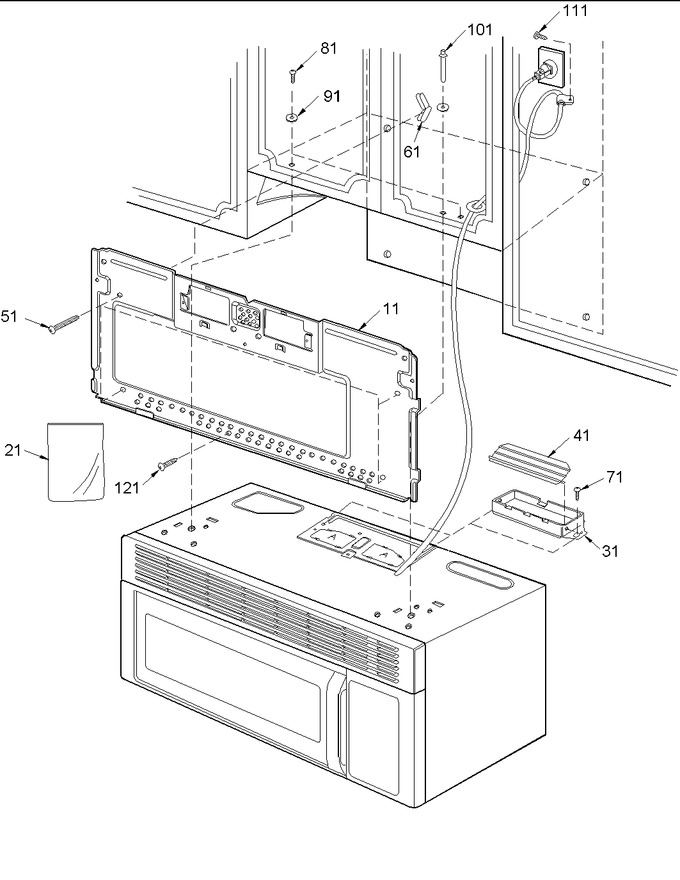

01 - Door & Controller
02 - Installation
03 - Interior
04 - Interior & Latch Board
05 - Miscellaeous Information
06 - Oven Cavity
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | R0130625 | Plate, Mounting |
|
- | |||||
| 21 | R9800681 | Kit, Mtg Hardware |
|
- | |||||
| 31 | R9800473 | Adapter, Exhaust |
|
- | |||||
| 41 | R9800478 | Damper, Air |
|
- | |||||
| 51 | R9800480 | Bolt, Toggle |
|
- | |||||
| 61 | R9800479 | Wing Nut |
|
- | |||||
| 71 | R0654183 | Screw, Truss Hd |
|
- | |||||
| 81 | R9800487 | Screw |
|
- | |||||
| 91 | R9800489 | Washer |
|
- | |||||
| 101 | R9800497 | Rod |
|
- | |||||
| 111 | WPY706189 | Screw (8ax3/8 Ph Tr Bk) (Replaces: R9800501) |
|
Immediately | $ 6.47 | ||||
| 121 | R9800483 | Bolt, Lag |
|
- | |||||
| NI | R0130656 | Template, Cabinet (upper) |
|
- |
