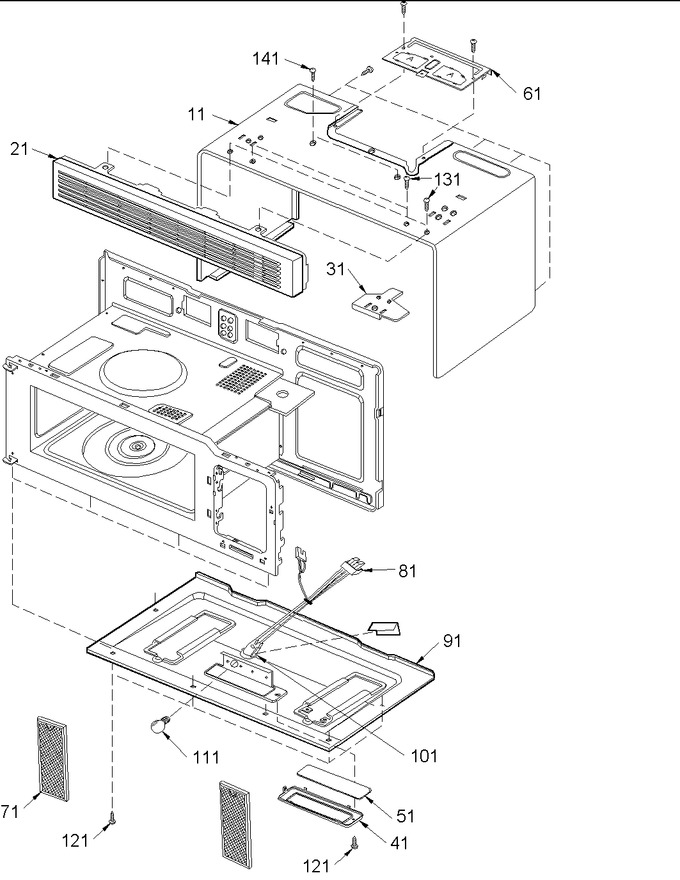

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | R0131485 | Cabinet (wht) |
|
- | |||||
| 21 | R0131488 | Grille, Vent (wht) |
|
- | |||||
| 31 | R9800364 | Bracket, Mounting |
|
- | |||||
| 41 | R9800392 | Bracket, Lens |
|
- | |||||
| 51 | R9800395 | Lens, Glass |
|
- | |||||
| 61 | R0130606 | Mount, Plate |
|
- | |||||
| 71 | 4358853 | Filter, Grease (Replaces: R9800408) |
|
Immediately | $ 16.99 | ||||
| 81 | R0131489 | Connector Assy |
|
- | |||||
| 91 | R0131490 | Plate, Base |
|
- | |||||
| 101 | R9800407 | Socket, Lamp |
|
- | |||||
| 111 | 8206232A | Lamp (oven/baseless) (Replaces: R9900310) |
|
Immediately | $ 6.61 | ||||
| 121 | R0131491 | Screw, Tapping Truss Head |
|
- | |||||
| 131 | R9800359 | Screw, Tap Th |
|
- | |||||
| 141 | R0654183 | Screw, Truss Hd |
|
- |
