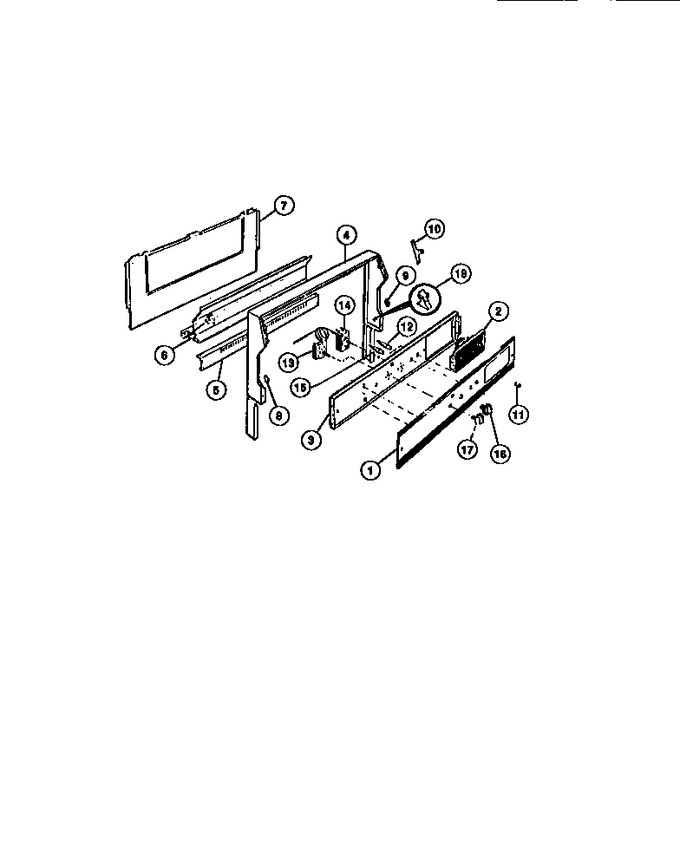

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303212676 | Clock |
|
- | |||||
| 3 | 5303274449 | Plate-instruction Mounting |
|
- | |||||
| 4 | 3131238 | Trim, Wrapper |
|
- | |||||
| 5 | 3131241 | Trim-vent |
|
- | |||||
| 6 | 5303212535 | Trim-splasher-almond |
|
- | |||||
| 7 | 5303279360 | Shield-backguard |
|
- | |||||
| 8 | 3131229 | Cap-lh |
|
- | |||||
| 9 | 3131230 | Cap-rh |
|
- | |||||
| 10 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 11 | 3131472 | Knob-clock (3) |
|
- | |||||
| 12 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 13 | 5303212678 | Switch Selector |
|
- | |||||
| 14 | 5303271746 | Thermostat |
|
$ 414.28 | |||||
| 15 | 3201728 | Indicator-light Lock |
|
- | |||||
| 16 | 5303212679 | Knob-thermostat |
|
- | |||||
| 17 | 5303212680 | Knob-selector, 5 Position |
|
- | |||||
| 18 | 5303131237 | Support, Backguard |
|
- | |||||
| *64577 | 3204745 | Bushing, Control Shaft |
|
- |
