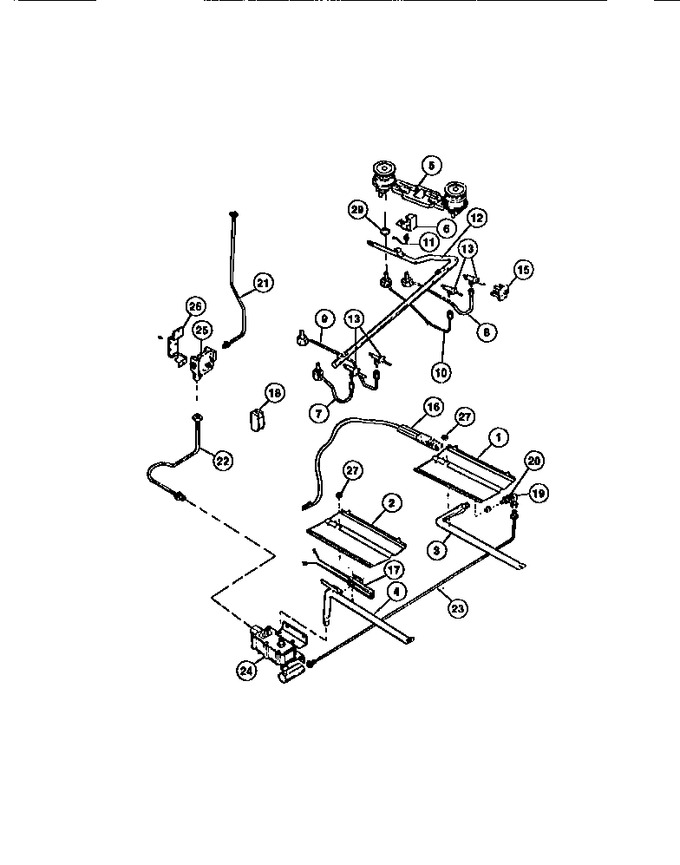

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303210379		Baffle-broiler				$ 175.88
2	3131284		Baffle-oven				$ 155.77
3	08067935		Burner-broiler				$ 142.59
4	3131290		Burner-oven		Appelez-nous	-
5	5303131147		Burner-top Double (2)		Appelez-nous	-
6	3016993		Retainer Ignitor (2)		Appelez-nous	-
7	5303283666		Burner-tube Lf		Appelez-nous	-
8	5303283665		Burner-tube Rf		Appelez-nous	-
9	5303283668		Burner-tube Lr		Appelez-nous	-
10	5303283667		Burner-tube Rr		Appelez-nous	-
11	3200276		Base Ignitor (2)		Appelez-nous	-
12	5303271375		Manifold Pipe		Appelez-nous	-
13	5303281600		Valve, Top, 2 Position (4)		Appelez-nous	-
15	5303280577		Switch-ignitor		Appelez-nous	-
16	5303935068		Ignitor, Broiler Burner   (Replaces: 5308067970)				$ 166.55
17	5303935066		Ignitor, Oven   (Replaces: 5303131300)			Immediately	$ 59.58
18	5303200669		Ignitor-module		Appelez-nous	-
19	08067979		Mixer-elbow		Appelez-nous	-
20	3131358		Nut-hex		Appelez-nous	-
21	5303208495		Tube-aluminum With Fitting, Regulator/manifold Pipe		Appelez-nous	-
22	5303208494		Tube-aluminum With Fitting, Valve/regulator		Appelez-nous	-
23	5303208493		Tube-aluminum With Fitting, Valve/mixer		Appelez-nous	-
24	5303208499		Valve-safety-dual			Immediately	$ 559.67
25	5303280582		Control-regulator		Appelez-nous	-
26	08067934		Bracket-regulator		Appelez-nous	-
27	154079601		Nut   (Replaces: 5303013272)				$ 0.41
29	3013279		Nut, Special				$ 2.34
*64560	3200277		Bracket-burner		Appelez-nous	-
