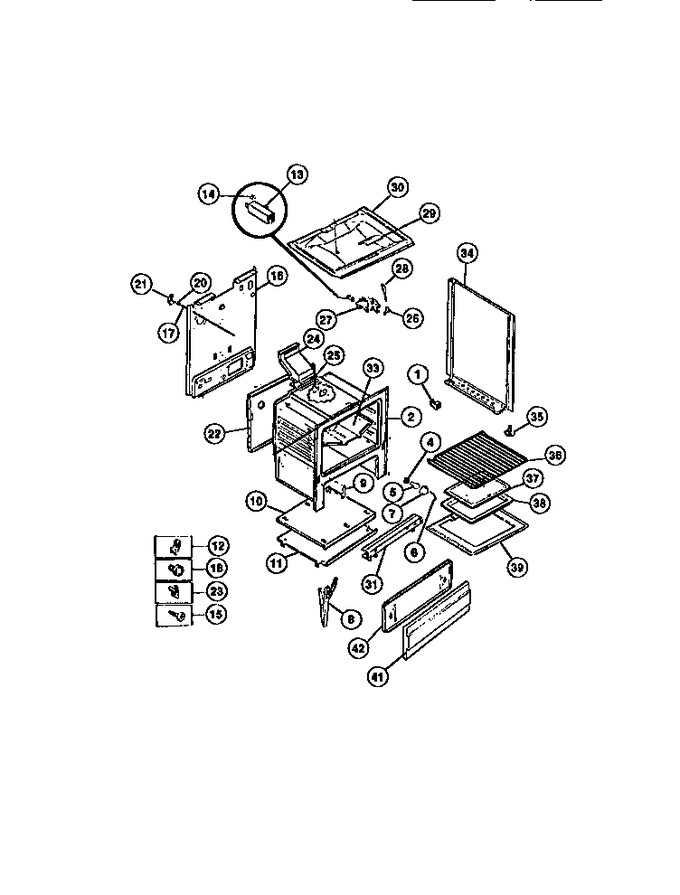

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
4	3014073		Socket-oven Light		Appelez-nous	-
5	5303208582		Light Bulb, Oven		Appelez-nous	-
6	3204483		Wire, Glass Retainer		Appelez-nous	-
7	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
8	316007000		Channel - Door Hinge (2)		Appelez-nous	-
9	3131570		Cover-hinge Cutout (2)				$ 7.35
10	5303270104		Shield-bake-burner		Appelez-nous	-
11	08067992		Shield, Wool (non-illustrated)		Appelez-nous	-
11	3131313		Shield-heat-lower		Appelez-nous	-
12	5303011805		Clip-thermostat Bulb		Appelez-nous	-
13	3131672		Switch, Latching		Appelez-nous	-
14	08067776		Fastener-push-on		Appelez-nous	-
14	08067978		Stud, Spacer (not Illustrated)		Appelez-nous	-
15	316282700		Screw-bottom (2)   (Replaces: 3131732)				$ 9.93
16	3203082		Back-main		Appelez-nous	-
17	5303209316		Rod Light		Appelez-nous	-
18	3131903		Bumper				$ 55.36
20	5303202622		Switch, Door		Appelez-nous	-
21	5303131289		Bracket-light Switch		Appelez-nous	-
22	08067991		Shield, Heat		Appelez-nous	-
23	3011813		Clip-wire				$ 14.79
24	3131931		Flue		Appelez-nous	-
25	08067965		Gasket-flue		Appelez-nous	-
26	3203218		Knob-latch		Appelez-nous	-
27	5303015453		Latch-door				$ 172.04
28	5303131357		Handle-latch				$ 37.33
29	08067757		Cover Plate		Appelez-nous	-
30	3011597		Burner Box		Appelez-nous	-
31	5303271047		Shield-main Front		Appelez-nous	-
33	3200836		Shield-heat Baffle		Appelez-nous	-
34	5303269543		Panel-bodyside Rh (almond)		Appelez-nous	-
34	5303269545		Panel Bodyside Lh (almond)		Appelez-nous	-
35	5303203397		Screw-leveling				$ 14.49
36	5303131973		Rack, Oven		Appelez-nous	-
37	5303131356		Insert-broiler Pan		Appelez-nous	-
38	5303013568		Pan-broiler		Appelez-nous	-
39	3014226		Support-oven Bottom, (non-illustrated)		Appelez-nous	-
39	5303212540		Oven Bottom		Appelez-nous	-
41	3051202		Panel-dummy Drawer-almond		Appelez-nous	-
42	3131975		Shield-panel		Appelez-nous	-
*64561	3131593		Shield, Bi Metal Latch		Appelez-nous	-
*64562	08013188		Screw, Set, 10-24 X 3/16, Latch Knob		Appelez-nous	-
*64563	3051413		Shield-bi Metal Latch		Appelez-nous	-
*64564	08067961		Fastener-power Cord		Appelez-nous	-
*64565	3204582		Insulation-back		Appelez-nous	-
*64566	08067973		Insulation-front Frame				$ 51.74
*64567	3131304		Insulation-top		Appelez-nous	-
*64568	3200833		Insulation-wrapper		Appelez-nous	-
*64569	08068018		Shield-wire		Appelez-nous	-
*64570	3131314		Shield-oven-top		Appelez-nous	-
*64571	3018702		Plug-bumper		Appelez-nous	-
*64572	5303269502		Shield-wall Rear		Appelez-nous	-
*64573	3200834		Shield-heat, Body Side		Appelez-nous	-
*64574	3203529		Diagram-wiring		Appelez-nous	-
*64575	3934056		Anti-tip Bracket		Appelez-nous	-
*64576	5304534377		Cord, Power   (Replaces: 3202006)				$ 26.85
*64578	08010570		Fastener, Leveling Leg Tee Nut		Appelez-nous	-
