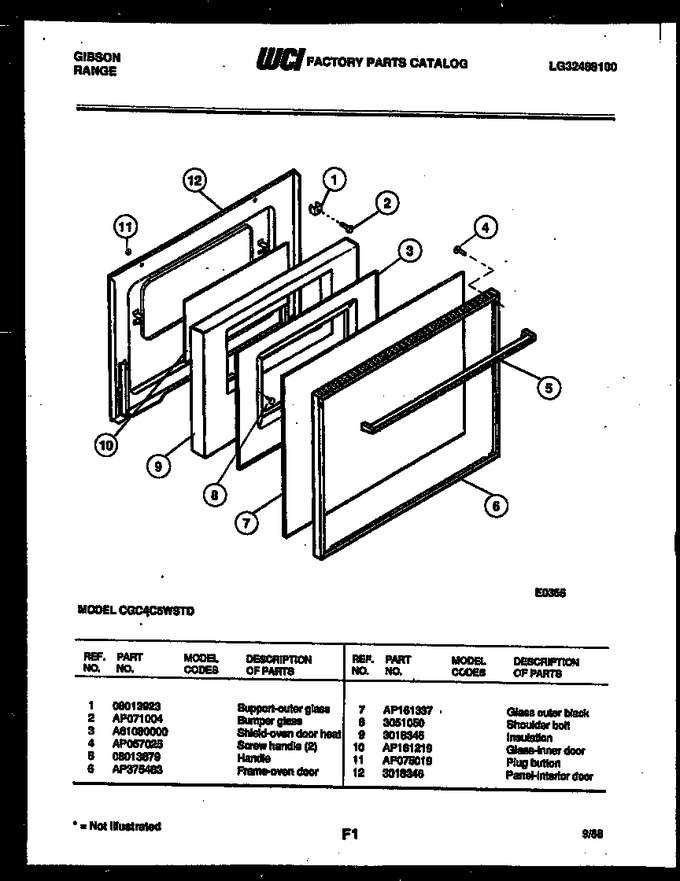

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08013923 | Support-outer Glass |
|
- | |||||
| 2 | AP071004 | Bumper Glass |
|
- | |||||
| 3 | A61080000 | Shield-oven Door Heat |
|
- | |||||
| 4 | AP057025 | Screw Handle (2) |
|
- | |||||
| 5 | 08013879 | Handle |
|
- | |||||
| 6 | AP375483 | Frame-oven Door |
|
- | |||||
| 7 | AP161337 | Glass Outer Black |
|
- | |||||
| 8 | 3051050 | Shoulder Bolt |
|
$ 12.29 | |||||
| 9 | 3018345 | Insulation |
|
- | |||||
| 10 | AP161219 | Glass-inner Door |
|
- | |||||
| 11 | AP075019 | Plug Button |
|
- | |||||
| 12 | 3018346 | Panel-interior Door |
|
- |
