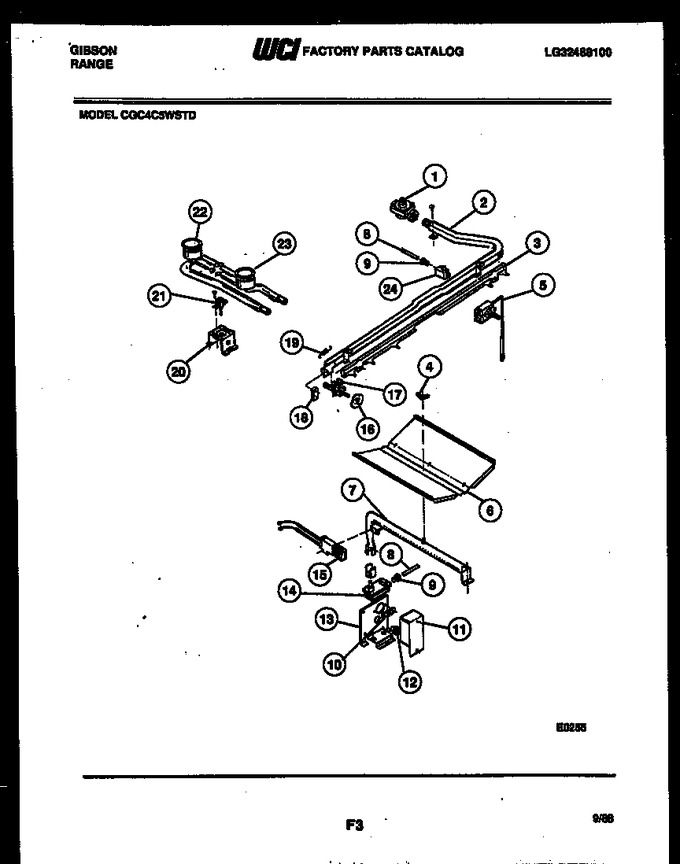

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	AP310007		Pressure Regul.		Appelez-nous	-
2	08013906		Manifold Pipe		Appelez-nous	-
3	A66018000		Slide Bar		Appelez-nous	-
4	AP269004		Wing Nut		Appelez-nous	-
5	AP367066		Thermostat		Appelez-nous	-
6	3131061		Baffle-oven Burner		Appelez-nous	-
7	AP072025		Burner-oven		Appelez-nous	-
8	3131085		Tube - Oven Feed		Appelez-nous	-
9	AP269017		Loxit-nut		Appelez-nous	-
10	AP042025		Terminal Block		Appelez-nous	-
11	A32130000		Cover-oven Safety Valve		Appelez-nous	-
12	AP074001		Snap Bushing		Appelez-nous	-
13	3131069		Support - Oven Valve		Appelez-nous	-
14	AP385181		Valve Safety		Appelez-nous	-
15	AP205013		Igniter-oven		Appelez-nous	-
16	A22002000		Cam Top Burner		Appelez-nous	-
17	08013940		Valve-top Burner		Appelez-nous	-
18	AP351123		Switch-micro.		Appelez-nous	-
19	3131096		Spring - Slide Bar		Appelez-nous	-
20	A74099000		Support Top Burner		Appelez-nous	-
21	3015196		Igniter Top Burner		Appelez-nous	-
22	AP072044		Burner Top Rear		Appelez-nous	-
23	AP072043		Burner Top Front		Appelez-nous	-
24	3131099		Valve - Shut Off		Appelez-nous	-
*14207	3131060		Clip-capillary		Appelez-nous	-
