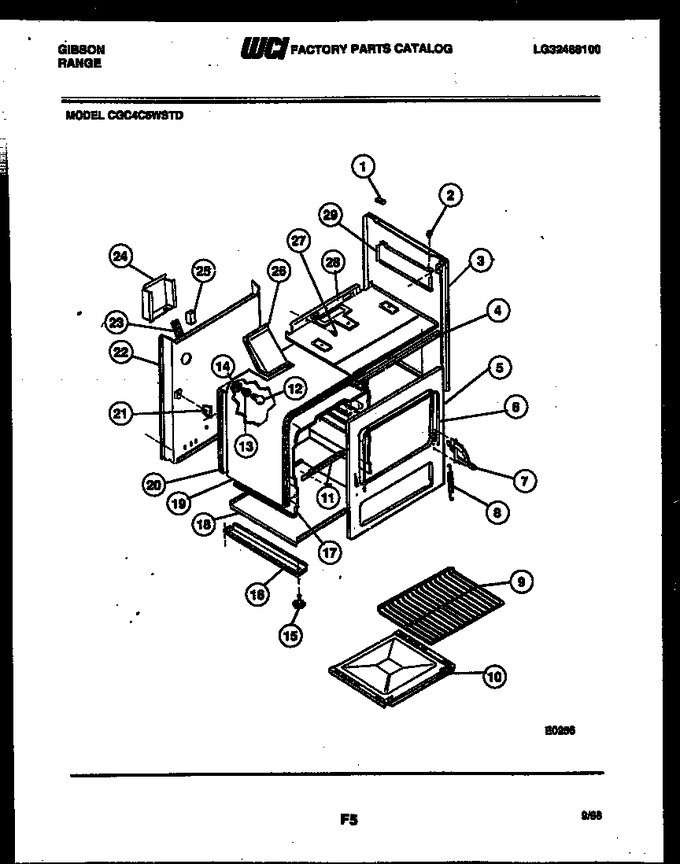

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	AP0172002		Grommet		Appelez-nous	-
3	3051061		Panel-bodyside White		Appelez-nous	-
3	A64013004		Panel Bodyside Almond		Appelez-nous	-
4	A74076000		Support, Control Panel		Appelez-nous	-
5	3017790		Front Frame		Appelez-nous	-
6	AP326052		Seal - Oven Door		Appelez-nous	-
7	3051078		Hinge Oven Door (rt)		Appelez-nous	-
8	AP339042		Spring Oven Door		Appelez-nous	-
9	3015714		Rack-oven		Appelez-nous	-
10	3018282		Liner-oven Bttn.		Appelez-nous	-
11	3131038		Support-oven Bttn.		Appelez-nous	-
12	K1186186		Bulb-oven Light		Appelez-nous	-
13	K1325527		Receptacle-oven Light		Appelez-nous	-
14	3051511		Cup, Oven Light				$ 60.22
15	AP059009		Leveling Leg		Appelez-nous	-
16	A98373000		Base Rail		Appelez-nous	-
17	3018709		Liner - Rt Side		Appelez-nous	-
18	A11069000		Bottom Main		Appelez-nous	-
19	AP207065		Insulation-wrap		Appelez-nous	-
20	AP207068		Insulation-back		Appelez-nous	-
21	3051096		Support,oven Rear		Appelez-nous	-
22	A05087000		Main Back		Appelez-nous	-
23	A29017000		Channel Wire		Appelez-nous	-
24	A32137000		Cover-spark Module		Appelez-nous	-
25	3015197		Spark - Module		Appelez-nous	-
26	3017173		Vent Box		Appelez-nous	-
27	AP074001		Snap Bushing		Appelez-nous	-
28	3017174		Buttom Burner Box		Appelez-nous	-
29	3051053		Shield Burner Box Rt.		Appelez-nous	-
*14212	08068034		Brkt Install.		Appelez-nous	-
*14212	3131791		Clip,bodyside				$ 19.01
17A	3018710		Liner - Lt Side		Appelez-nous	-
17B	3018711		Liner-top		Appelez-nous	-
17C	3018712		Liner-back		Appelez-nous	-
29A	3051054		Shield Burner Box Lt.		Appelez-nous	-
7A	A96067000		Hinge - Oven Door Lt.		Appelez-nous	-
