02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Burner Parts


06 - Body Parts


07 - Drawer Parts


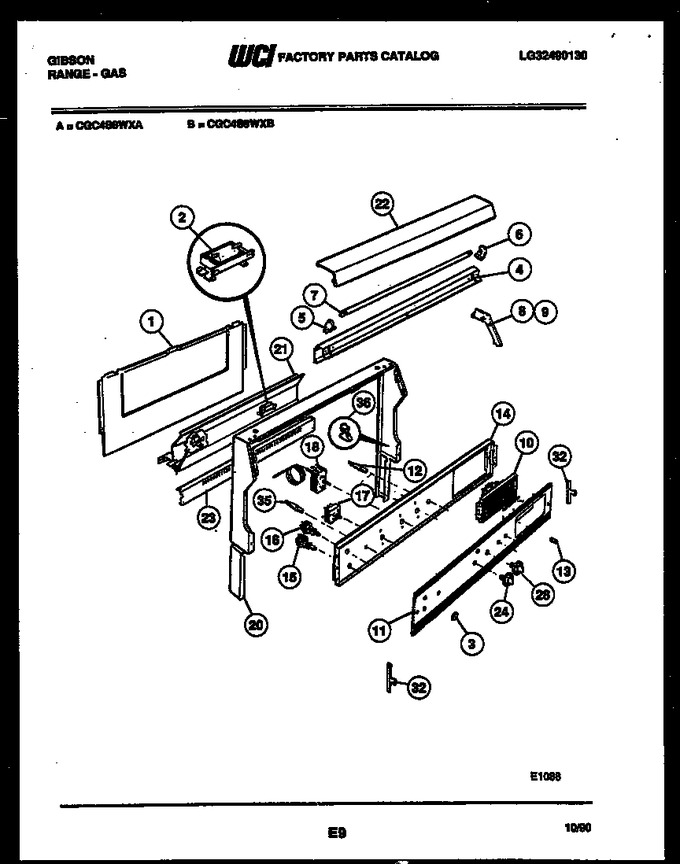

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield, Rear Wall		Appelez-nous	-
2	5303051115		Ballast		Appelez-nous	-
3	5303011507		Bezel, Switch (2)				$ 21.47
4	3131277		Support, Fluorescent		Appelez-nous	-
5	3051222		Receptacle - Fluor Light Lh		Appelez-nous	-
6	3051223		Receptacle - Fluor Light Rh		Appelez-nous	-
7	3131275		Bulb-fluorescent				$ 49.40
8	3131267		Cap End-trim Canopy-lh		Appelez-nous	-
9	3131268		Cap End-trim Canopy-rh		Appelez-nous	-
10	5303212676		Electrical Clock		Appelez-nous	-
11	5303212677		Control Panel		Appelez-nous	-
12	08037896		Indicator Light (2)		Appelez-nous	-
13	3131472		Knob-clock (3)		Appelez-nous	-
14	5303212536		Plate - Instr Mtg		Appelez-nous	-
15	5303200479		Switch Oven Light				$ 7.04
16	5303200480		Switch Fl Light				$ 125.53
17	5303212678		Switch Selector		Appelez-nous	-
18	3203199		Thermostat Bake		Appelez-nous	-
20	3131280		Trim-wrapper		Appelez-nous	-
21	5303212534		Trim-lwr Splasher (white)		Appelez-nous	-
21	5303212535		Trim-lwr Splasher (almd)		Appelez-nous	-
22	5303212668		Trim-canopy		Appelez-nous	-
23	3131241		Trim-vent		Appelez-nous	-
24	5303212679		Knob-thermostat		Appelez-nous	-
28	5303212680		Knob-selector Sw		Appelez-nous	-
32	3131240		Trim-glass Retainer, (2)		Appelez-nous	-
35	3201728		Indicator Light-lock (1)		Appelez-nous	-
36	5303131237		Support-backguard,(2)		Appelez-nous	-
*29744	3018820		Shield-backguard		Appelez-nous	-
*29745	3131276		Spacer-fl Lt Mtg		Appelez-nous	-
35A	3204745		Bushing-control Shaft (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
