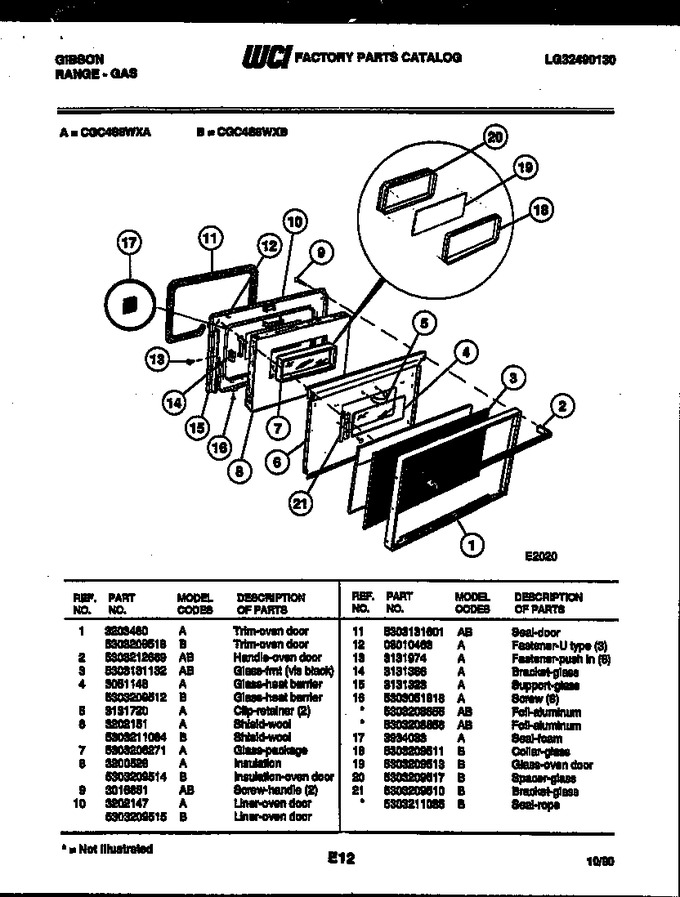

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Burner Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203480 | Trim, Oven Door |
|
- | |||||
| 2 | 5303212669 | Handle-oven Door |
|
- | |||||
| 3 | 5303131132 | Glass-frnt (vis Black) |
|
- | |||||
| 4 | 3051148 | Glass, Heat Barrier |
|
- | |||||
| 5 | 3131720 | Clip, Retainer (2) |
|
- | |||||
| 6 | 3202151 | Shield, Wool |
|
- | |||||
| 7 | 5303206271 | Glass Package |
|
- | |||||
| 8 | 3200528 | Insulation |
|
- | |||||
| 9 | 3016851 | Screw, Handle (2) |
|
- | |||||
| 10 | 3202147 | Liner-oven Door |
|
- | |||||
| 11 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 12 | 08010463 | Fastener-clip |
|
- | |||||
| 13 | 3131974 | Fastener, Push In (6) |
|
- | |||||
| 14 | 3131366 | Bracket - Glass |
|
- | |||||
| 15 | 3131323 | Support, Glass |
|
- | |||||
| 16 | 5303051818 | Screw (8) |
|
- | |||||
| 17 | 3934033 | Seal, Foam |
|
- | |||||
| 16A | 5303208655 | Foil-aluminum (non-illustrated) |
|
- | |||||
| 16A | 5303208656 | Foil-aluminum (non-illustrated) |
|
- |
