New Model Search:

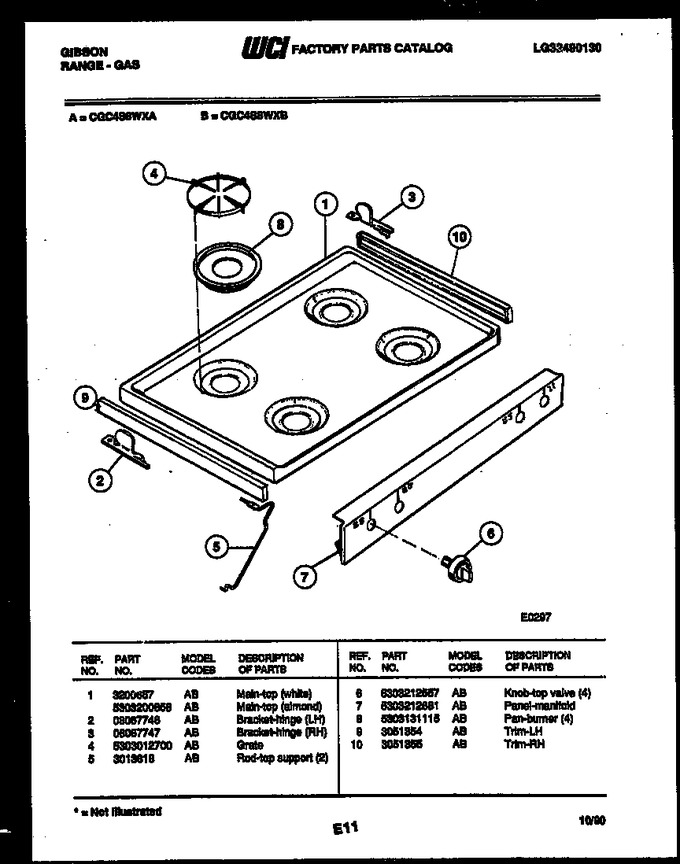

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200658 | Main Top, Almond |
|
- | |||||
| 1 | 3200657 | Main Top, White |
|
- | |||||
| 2 | 08067746 | Bracket-hinge Lh |
|
- | |||||
| 3 | 08067747 | Bracket-hinge Rh |
|
- | |||||
| 4 | 5303012700 | Grate |
|
- | |||||
| 5 | 3013818 | Rod-top Support (2) |
|
- | |||||
| 6 | 5303212557 | Knob-top Valve (4) |
|
- | |||||
| 7 | 5303212681 | Panel-manifold |
|
- | |||||
| 8 | 5303131115 | Pan-burner (4) |
|
$ 15.62 | |||||
| 9 | 3051354 | Trim-lh |
|
- | |||||
| 10 | 3051355 | Trim-rh |
|
- |
