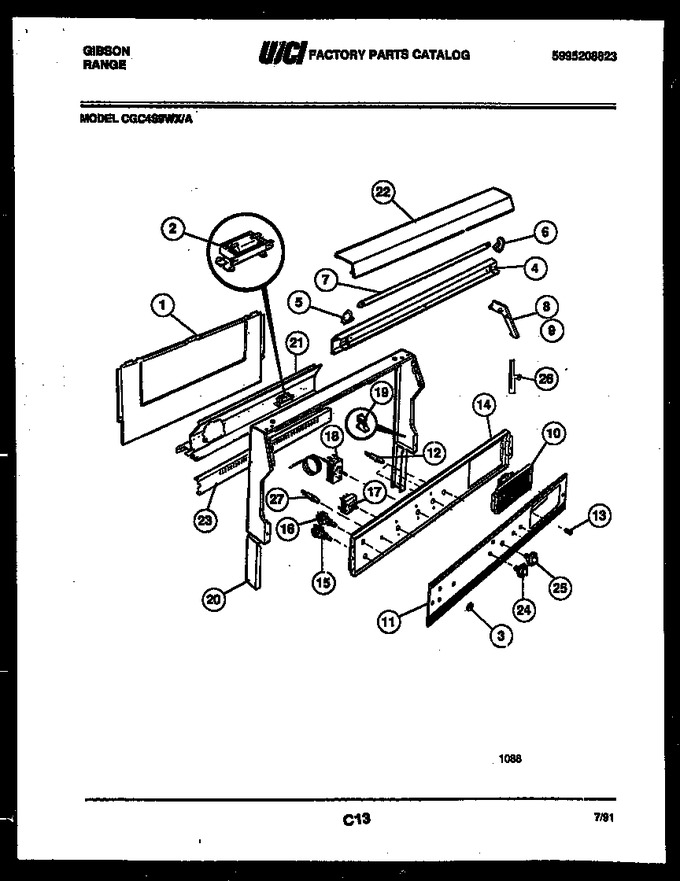

SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Drawer Parts


05 - Burner And Broiler Parts


06 - Body Parts


07 - Door Parts


08 - Burner Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield, Rear Wall		Appelez-nous	-
2	530305115		Ballast		Appelez-nous	-
3	5303011507		Bezel, Switch (2)				$ 21.47
4	3131277		Support, Fluorescent		Appelez-nous	-
5	3051223		Receptacle Fluor Light Lh		Appelez-nous	-
6	3051222		Receptacle Fluor Light Rh		Appelez-nous	-
7	3131275		Bulb-fluorescent				$ 49.40
8	3131268		Cap End-rh Trim Canopy		Appelez-nous	-
9	3131267		Cap End-lh Trim Canopy		Appelez-nous	-
10	5303212676		Electrical Clock		Appelez-nous	-
11	5303212677		Glass Backguard		Appelez-nous	-
12	5308037896		Indicator Light				$ 39.75
13	3131472		Knob-clock (3)		Appelez-nous	-
14	5303212536		Plate-instr Mounting		Appelez-nous	-
15	5303200479		Switch Oven Light				$ 7.04
16	5303200480		Switch Fl Light				$ 125.53
17	5303212678		Switch Selector		Appelez-nous	-
18	5303271746		Thermostat				$ 414.28
19	5303131237		Support-backguard,(2)		Appelez-nous	-
20	3131280		Trim-wrapper		Appelez-nous	-
21	5303212534		Trim-lwr Splshr-white		Appelez-nous	-
21	5303212535		Trim-lwr Splshr-almd		Appelez-nous	-
22	5303212668		Trim-canopy		Appelez-nous	-
23	3131241		Trim-vent		Appelez-nous	-
24	5303212680		Knob Sel		Appelez-nous	-
25	5303212679		Knob-thermo		Appelez-nous	-
26	3131240		Trim-glass Retainer		Appelez-nous	-
27	3201728		Indicator Light-lock (1)		Appelez-nous	-
*38017	3204745		Bushing, Control Shaft		Appelez-nous	-
*38017	5303269994		Bracket-thermostat		Appelez-nous	-
*38017	3131276		Spacer-fl Lt Mtg		Appelez-nous	-
