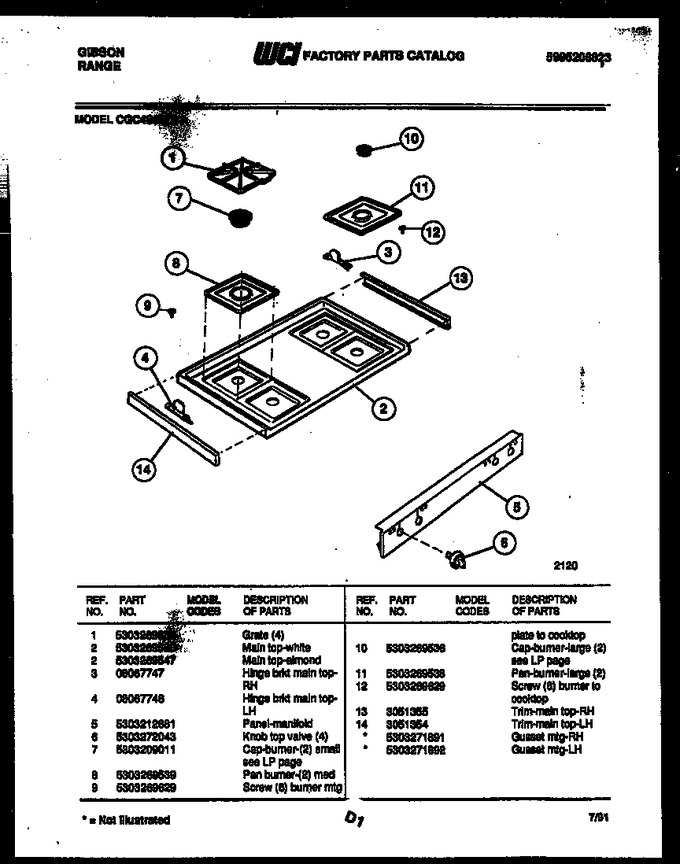

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Drawer Parts
05 - Burner And Broiler Parts
06 - Body Parts
07 - Door Parts
08 - Burner Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318228310 | Grate (4) (Replaces: 5303269632) |
|
Immediately | $ 22.91 | ||||
| 2 | 5303269547 | Main Top-almond |
|
- | |||||
| 2 | 5303269520 | Main Top-white |
|
- | |||||
| 3 | 08067747 | Hinge Brkt Main Top-rh |
|
- | |||||
| 4 | 08067746 | Hinge Brkt Main Top-lh |
|
- | |||||
| 5 | 5303212681 | Panel-manifold |
|
- | |||||
| 6 | 5303272043 | Knob Top Valve (4) |
|
- | |||||
| 7 | 5303209011 | Cap-burner-2 Small (see L.p. Page) |
|
- | |||||
| 8 | 5303269539 | Pan-burner-2 Med |
|
$ 71.51 | |||||
| 9 | 5303269629 | Screw (6) Burner Mtg Plate To Cooktop |
|
- | |||||
| 10 | 5303269536 | Cap-burner-large (2) See Lp Page |
|
- | |||||
| 11 | 5303269538 | Pan-burner-large (2) |
|
- | |||||
| 12 | 5303269629 | Screw (6) Burner To Cooktop |
|
- | |||||
| 13 | 3051355 | Trim, Main Top (rh) |
|
- | |||||
| 14 | 3051354 | Trim, Main Top, Lh |
|
- | |||||
| *38020 | 5303271891 | Gusset-mtg Rh |
|
- | |||||
| *38020 | 5303271892 | Gusset-mtg Lh |
|
- |
