| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

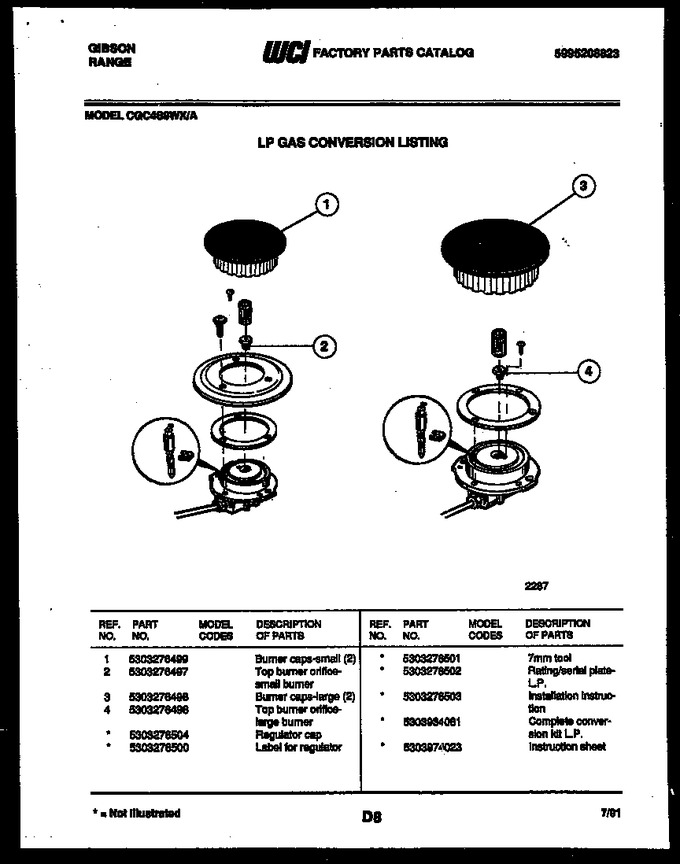

| 1 | 5303276499 | Burner Caps-small (2) |
|
- | |||||
| 2 | 5303276497 | Top Burner Orifice Small Burner |
|
- | |||||
| 3 | 5303276498 | Burner Caps-large (2) |
|
- | |||||
| 4 | 5303276496 | Top Burner Orifice-large Burner |
|
- | |||||
| *38042 | 5303276504 | Regulator Cap |
|
- | |||||
| *38042 | 5303276501 | 7mm Tool |
|
- | |||||
| *38042 | 5303276502 | Rating/serial Plate L.p. |
|
- | |||||
| *38042 | 5303276500 | Label For Regulator |
|
- | |||||
| *38043 | 5303934081 | Complete Conversion Kit L.p. |
|
- | |||||
| *38043 | 5303974023 | Instruction Sheet |
|
- | |||||
| *38043 | 5303276503 | Installation Instruction |
|
- |
