New Model Search:

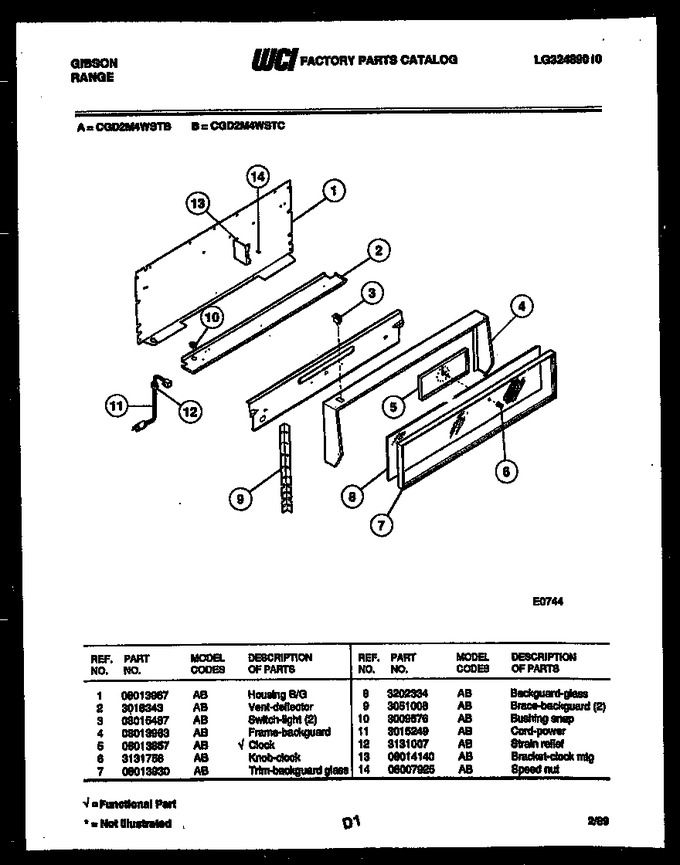

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08013967 | Housing B/g |
|
- | |||||
| 2 | 3018343 | Vent-deflector |
|
- | |||||
| 3 | 08015487 | Switch Light (2) |
|
- | |||||
| 4 | 08013963 | Frame Backguard |
|
- | |||||
| 5 | 08013857 | Clock |
|
- | |||||
| 6 | 3131756 | Knob - Clock |
|
- | |||||
| 7 | 08013930 | Trim Backguard Glass |
|
- | |||||
| 8 | 3202334 | Backguard-glass |
|
- | |||||
| 9 | 3051008 | Brace - Backguard (2) |
|
- | |||||
| 10 | 3009576 | Bushing Snap |
|
- | |||||
| 11 | 3015249 | Cord - Power |
|
- | |||||
| 12 | 3131007 | Strain Relief |
|
- | |||||
| 13 | 08014140 | Bracket-clock Mtg |
|
- | |||||
| 14 | 08007925 | Nut - Speed |
|
- |
