New Model Search:

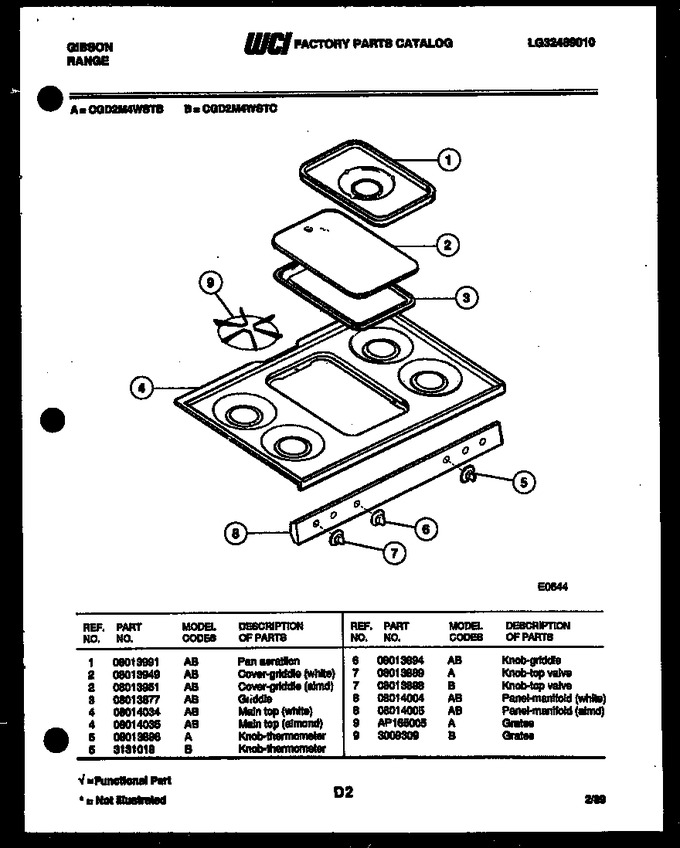

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08013991 | Pan Aeratiion |
|
- | |||||
| 2 | 08013951 | Cover - Griddle (almd) |
|
- | |||||
| 2 | 08013949 | Cover - Griddle (white) |
|
- | |||||
| 3 | 08013877 | Griddle |
|
- | |||||
| 4 | 08014035 | Main Top, Almond |
|
- | |||||
| 4 | 08014034 | Main Top - White |
|
- | |||||
| 5 | 3131018 | Knob-thermometer |
|
- | |||||
| 6 | 08013894 | Knob-griddle |
|
- | |||||
| 7 | 08013898 | Knob - Top Valve |
|
- | |||||
| 8 | 08014005 | Panel-manifold (almd) |
|
- | |||||
| 8 | 08014004 | Panel-manifold (white) |
|
- | |||||
| 9 | 3009309 | Grates |
|
- |
