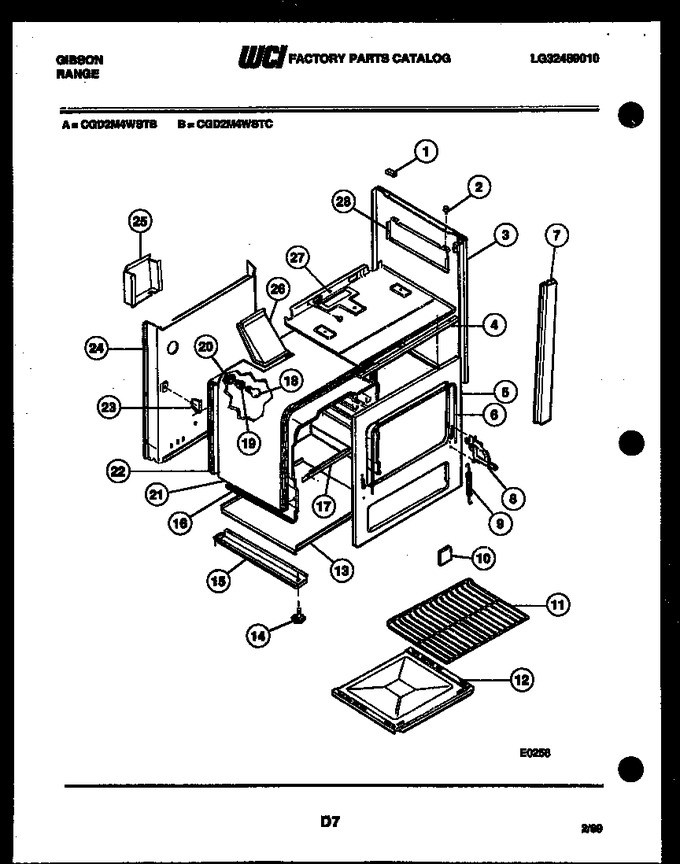

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	08014019		Body Side Panel (almond)		Appelez-nous	-
3	3051061		Panel - B/s (white)		Appelez-nous	-
4	08014025		Support Control Panel		Appelez-nous	-
5	3017790		Frame - Front		Appelez-nous	-
6	08008022		Seal-oven Door		Appelez-nous	-
7	08013994		Filler-panel B/s (almd)		Appelez-nous	-
7	08013993		Filler-panel B/s (white)		Appelez-nous	-
8	3051077		Oven Door Hinge Lt		Appelez-nous	-
8	3051078		Oven Door Hinge (rt)		Appelez-nous	-
9	08008028		Spring - Oven Door		Appelez-nous	-
10	08014023		Support - Base Rail		Appelez-nous	-
11	3014714		Rack-oven		Appelez-nous	-
12	3018282		Bottom Oven Liner		Appelez-nous	-
13	3011645		Bottom - Main		Appelez-nous	-
14	3051080		Leg Leveler		Appelez-nous	-
15	3051081		Base-rail		Appelez-nous	-
16	3018285		Liner - Side Lt		Appelez-nous	-
16	3018284		Liner - Side Rt		Appelez-nous	-
16	3018286		Liner-back		Appelez-nous	-
16	3018347		Liner - Top		Appelez-nous	-
17	3131038		Support-oven Bottom		Appelez-nous	-
18	3051082		Bulb-oven Light		Appelez-nous	-
19	3009410		Receptacle-oven Light		Appelez-nous	-
20	3051511		Cup, Oven Light				$ 60.22
21	3017171		Insulation - Wrap		Appelez-nous	-
22	3017172		Insulation - Back		Appelez-nous	-
23	3051096		Support,oven Rear		Appelez-nous	-
24	08013945		Main Back		Appelez-nous	-
25	3018340		Cover-spark Module		Appelez-nous	-
26	3017173		Vent Box		Appelez-nous	-
27	3017993		Burner - Box Bottom		Appelez-nous	-
28	3051054		Shield Burner Box Lt.		Appelez-nous	-
28	3051053		Shield Burner Box Rt.		Appelez-nous	-
*15766	3009582		Clip-body Side		Appelez-nous	-
*15766	3018339		Reflector Plate		Appelez-nous	-
