Diagram for 01 - Door And Panel Parts
01 - Door And Panel Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Latch Parts
03 - Door And Latch Parts

Diagram for 04 - Lower Washarm Parts
04 - Lower Washarm Parts

Diagram for 05 - Heater Parts
05 - Heater Parts

Diagram for 06 - Fill And Overfill Parts
06 - Fill And Overfill Parts

Diagram for 07 - Tub And Frame Parts
07 - Tub And Frame Parts

Diagram for 08 - Pump And Motor Parts
08 - Pump And Motor Parts

Diagram for 09 - Upper And Lower Rack Parts
09 - Upper And Lower Rack Parts

Diagram for 10 - Upper Wash And Rinse Parts, Optional Parts (not Included)
10 - Upper Wash And Rinse Parts, Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 99002575 Housing, Board (top) Special Order $ 20.11

2 W10218837 Board, Control Special Order $ 190.12

3 99002576 Housing, Board Special Order $ 25.18

4 99003463 Panel, Control (black) Appelez-nous -
4 99003465 Panel, Control (white) Appelez-nous -
5 99002751 Switch, Door Special Order $ 23.02

6 WPW10275768 Latch Assembly   (Replaces: 99003347) In-Stock Immediately $ 79.15


    View Diagram in Separate Window     Print Icon   Print Part List

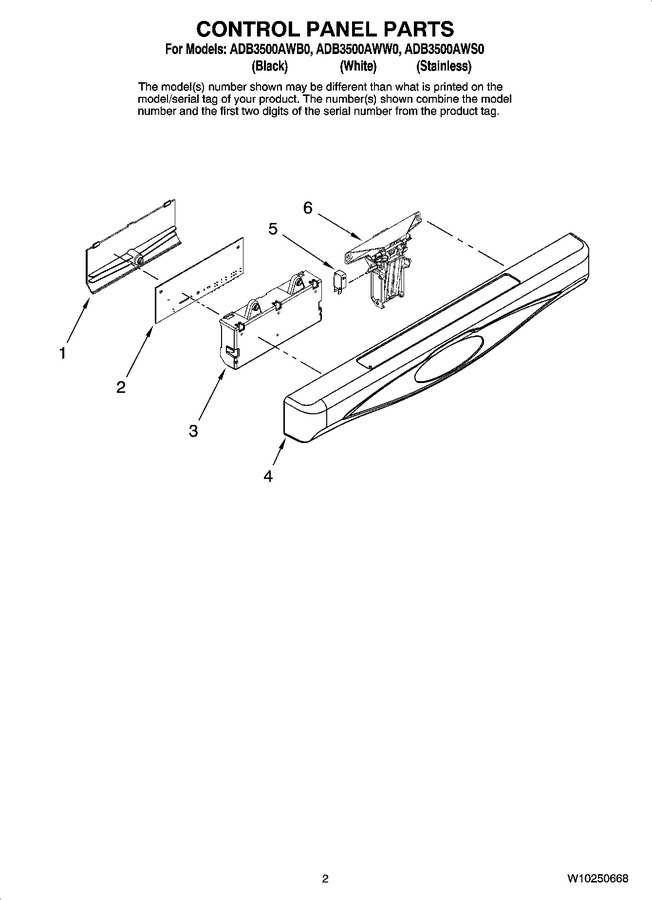

Diagram for ADB3500AWB0
