Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 99002852 Hose, Inlet Special Order $ 42.55

2 WP596669 Clamp, Spring   (Replaces: 911856) In-Stock Immediately $ 7.56

3 W11082871 Valve, Water   (Replaces: 99002975) In-Stock Immediately $ 119.48

4 W10205539 Switch, Float Special Order $ 43.91

5 WP99002652 Hose, Drain   (Replaces: 99002652) In-Stock Immediately $ 141.79

6 W10130095 Float Appelez-nous -
7 99003028 Inlet, Air/water Special Order $ 66.08


    View Diagram in Separate Window     Print Icon   Print Part List

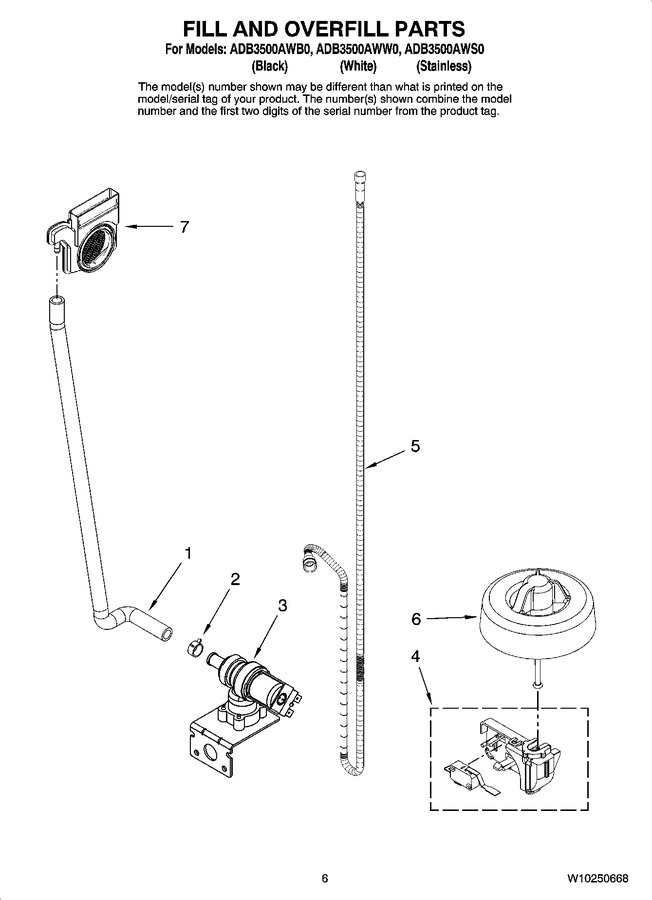

Diagram for ADB3500AWB0
