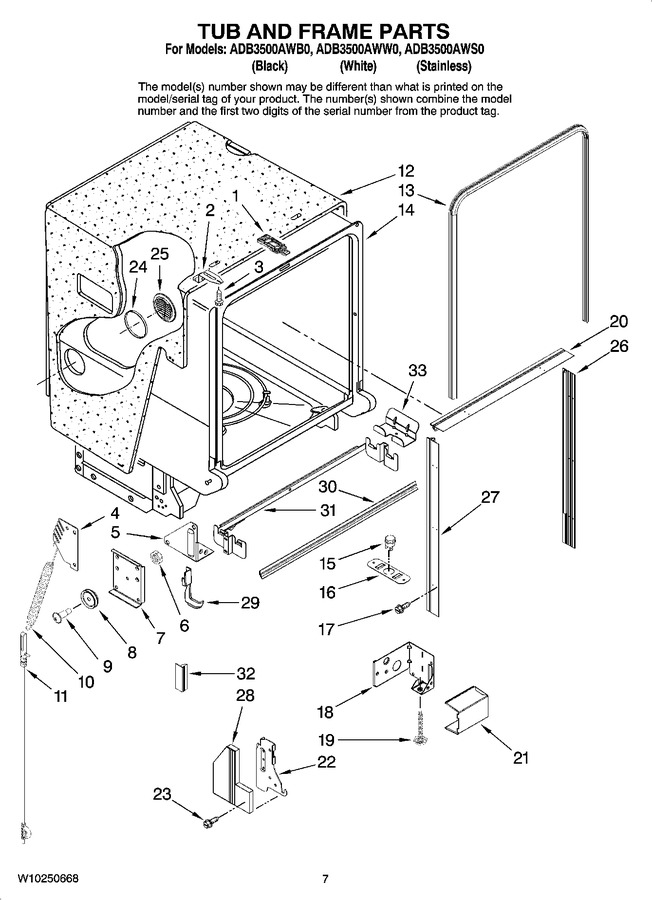

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10119337 | Strike, Door |
|
$ 23.34 | |||||
| 2 | 99002648 | Bracket, Cabinet Mounting |
|
- | |||||
| 3 | 6-912799 | Screw |
|
- | |||||
| 4 | 99002610 | Bracket, Spring Adjustment |
|
- | |||||
| 5 | 99002636 | Bracket, Support |
|
- | |||||
| 6 | 99003688 | Nut |
|
$ 5.51 | |||||
| 7 | W10173920 | Bracket, Cable |
|
- | |||||
| 8 | 99002608 | Roller, Cable Bracket |
|
$ 9.46 | |||||
| 9 | 99003687 | Bolt, Shoulder |
|
$ 5.33 | |||||
| 10 | 99002598 | Spring, Door |
|
$ 5.83 | |||||
| 11 | WP99003446 | Door Cable Assy. (Replaces: 99003446) |
|
Immediately | $ 7.90 | ||||
| 12 | WPW10223013 | Insulation, Tub (Replaces: 99002849) |
|
$ 83.60 | |||||
| 13 | WP99003337 | Seal, Door (Replaces: 99003337) |
|
Immediately | $ 138.53 | ||||
| 14 | W10142298 | Tub Assembly (no Serviced) |
|
- | |||||
| 15 | 99002633 | Thermostat, Limiting |
|
$ 33.69 | |||||
| 16 | W10167658 | Clip, Thermostat |
|
- | |||||
| 17 | 99002692 | Screw, Trim Mounting |
|
$ 5.02 | |||||
| 18 | 99002637 | Bracket, Junction Box |
|
- | |||||
| 19 | WPW10143258 | Leg, Leveling (Replaces: W10143258) |
|
$ 13.81 | |||||
| 20 | W10164702 | Strip,trim Top |
|
- | |||||
| 21 | 99002638 | Cover, Junction Box |
|
- | |||||
| 22 | W10117485 | Support, Hinge (left) |
|
$ 99.12 | |||||
| 22 | W10117484 | Support, Hinge (right) |
|
$ 103.72 | |||||
| 23 | 99002601 | Screw |
|
- | |||||
| 24 | 99002150 | Seal, Air/water Inlet |
|
$ 8.72 | |||||
| 25 | 99003029 | Grill, Air/water Inlet |
|
- | |||||
| 26 | W10164701 | Strip, Trim (rt) |
|
- | |||||
| 27 | W10164700 | Strip, Trim (lft) |
|
- | |||||
| 28 | W10174581 | Backer, Hinge Seal (right) |
|
$ 10.73 | |||||
| 28 | W10174569 | Backer, Hinge Seal (left) |
|
$ 8.51 | |||||
| 29 | 99003039 | Trim, Corner Edge (right) |
|
$ 5.84 | |||||
| 29 | 99003038 | Trim, Corner Edge (left) |
|
$ 5.84 | |||||
| 30 | WP99003041 | Trim, Tub Edge (bottom) (Replaces: 99003041) |
|
Immediately | $ 89.01 | ||||
| 31 | W10167660 | Bracket, Support (rear) |
|
$ 36.18 | |||||
| 32 | 99002701 | Gap Seal, Toe Kick (black) |
|
$ 34.28 | |||||
| 32 | 99002703 | Gap Seal, Toe Kick (white) |
|
$ 24.09 | |||||
| 33 | W10167916 | Clamp, Rear Support |
|
- |
