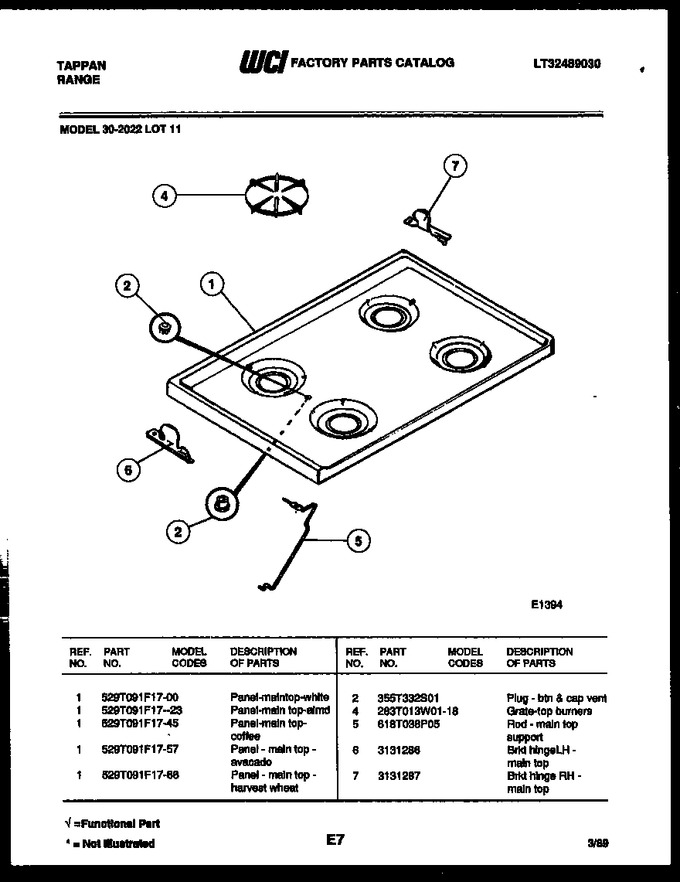

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 529T091F17-45 | Panel-main Top-coffee |
|
- | |||||
| 2 | 355T332S01 | Plug - Btn & Cap Vent |
|
- | |||||
| 4 | 283T013W01-18 | Grate-top Burners |
|
- | |||||
| 5 | 618T038P05 | Rod, Main Top Support |
|
- | |||||
| 6 | 3131286 | Brkt Hinge Lh - Main Top |
|
- | |||||
| 7 | 3131287 | Brkt Hinge Rh - Main Top |
|
- |
