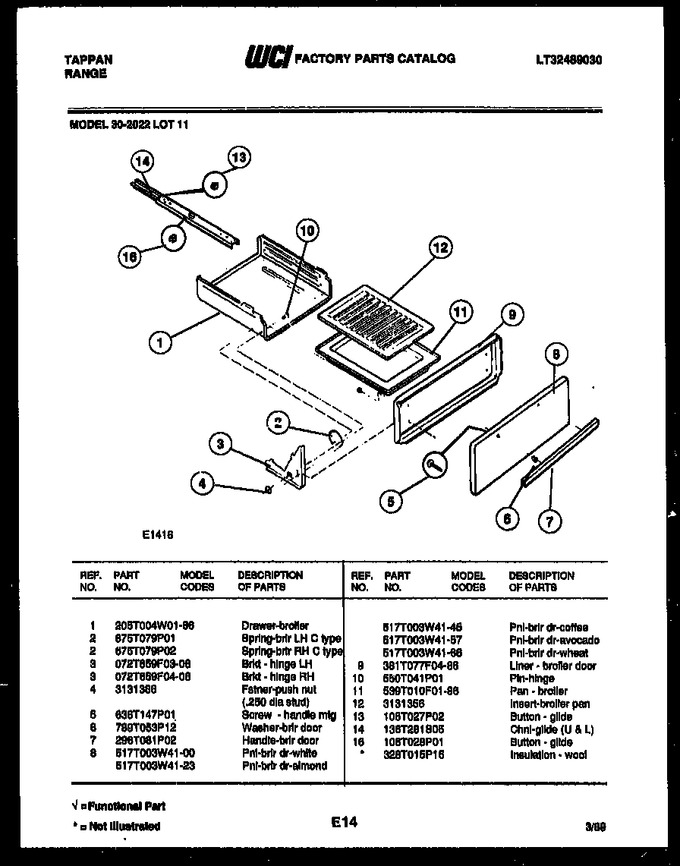

SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Burner Parts


06 - Body Parts


07 - Broiler Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	205T004W01-86		Drawer-broiler		Appelez-nous	-
2	675T079P02		Spring Brlr (rh-c Type)		Appelez-nous	-
2	675T079P01		Spring-brlr (lh-c Type)		Appelez-nous	-
3	072T659F03-08		Bracket, Hinge Broiler (lh)		Appelez-nous	-
3	072T659F04-08		Bracket, Hinge Broiler (rh)		Appelez-nous	-
4	3131386		Fstner-push Nut (.250 Dia Stud)		Appelez-nous	-
5	636T147P01		Screw - Handle Mtg		Appelez-nous	-
6	789T053P12		Washer-brlr Door		Appelez-nous	-
7	296T081P02		Handle-brlr Door		Appelez-nous	-
8	517T003W41-45		Pnl-brlr Dr-coffee		Appelez-nous	-
9	381T077F04-86		Liner-broiler Door		Appelez-nous	-
10	550T041P01		Pin, Hinge		Appelez-nous	-
11	539T010F01-86		Pan, Broiler		Appelez-nous	-
12	3131356		Insert, Broiler Pan		Appelez-nous	-
13	106T027P02		Button, Glide		Appelez-nous	-
14	136T281S05		Chnl-glide (u & L)		Appelez-nous	-
16	106T028P01		Button, Glide		Appelez-nous	-
*20839	328T015P15		Insulation - Wool		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
